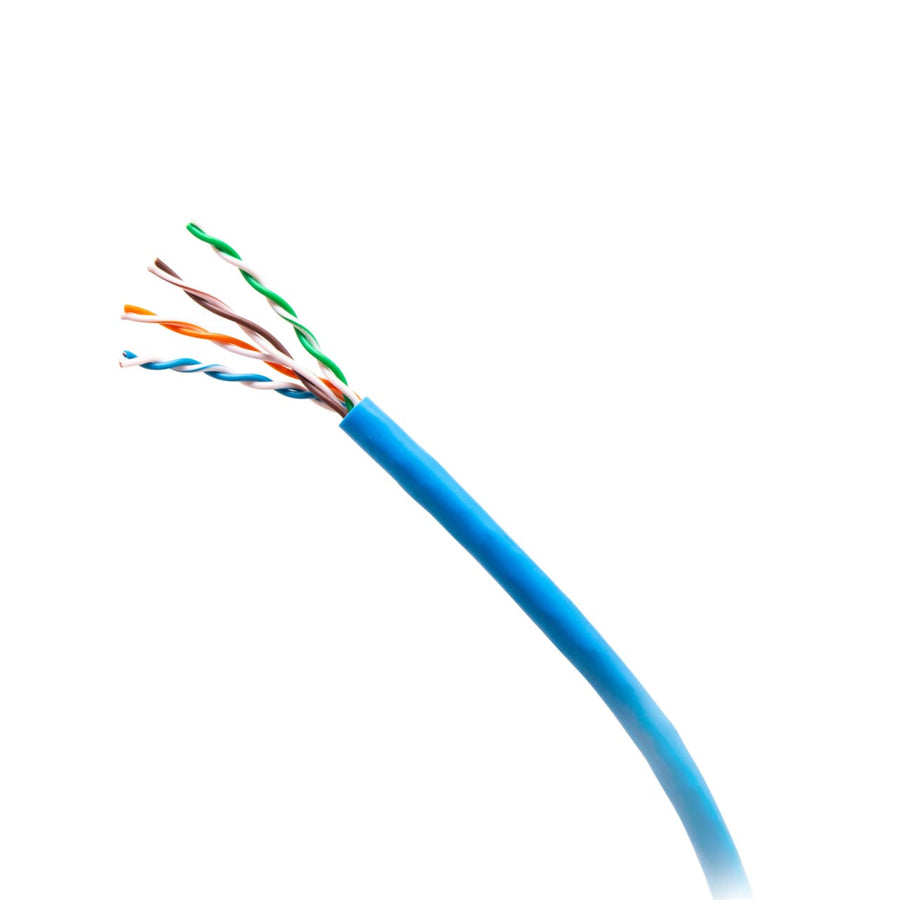

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Stranded Conductors In-Wall CM-Rated - Blue
1000ft blue Cat6 UTP bulk cable with stranded copper conductors, CM-rated for in-wall installation and TAA compliant
The C2G C2G56047 is a 1000 ft (304.8 m) spool of Cat6 Unshielded Twisted Pair (UTP) bulk Ethernet cable designed for professional LAN installations. This blue cable features stranded copper conductors and a 0.2 in (5.2 mm) diameter, providing a flexible solution for routing through tight spaces. It is CM-rated, specifically intended for in-wall applications where fire safety standards require flame-retardant jacket materials, specifically FRPVC (Flame Retardant Polyvinyl Chloride). This TAA-compliant cable is built to meet ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards, ensuring reliable data transmission in standard network environments. For large-scale deployments, this bulk roll provides a consistent 24 AWG signal path. The cable is rated for operating temperatures ranging from -4°F (-20°C) to 140°F (60°C), making it suitable for a variety of indoor environments. Because it uses unshielded (UTP) construction, it is appropriate for most standard LAN environments where high-frequency EMI shielding is not a requirement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.82 in (20.8 mm) |
| Cable Diameter | 0.2 in (5.2 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 23 lbs (10.4 kg) |
| Shipping Weight | 23.04 lbs (10.5 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 24 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | PO (Polyolefin) |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CM Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560470 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | FRPVC (Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
6-Port Cat6 Network Interface Module
AC1013$109.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is the C2G C2G56047 suitable for in-wall installation?
Yes, this Cat6 cable features a CM-rated FRPVC jacket, which is specifically designed for in-wall applications.
What is the difference between this cable and shielded options?
This SKU is an Unshielded Twisted Pair (UTP) cable. For environments with high EMI potential, you may need a shielded F/UTP version.
What accessories are compatible with this Cat6 bulk cable?
This cable is compatible with various components like the CG29746 USB-C to Ethernet Adapter, CG29311 Cat6 RJ45 Keystone Jacks, and AC1013 6-Port Cat6 Network Interface Modules.
What is the bend radius for this Cat6 cable?
The minimum bend radius for this cable is 0.82 in (20.8 mm).
Is this cable TAA compliant for government contracts?
Yes, this 1000ft spool of C2G56047 is TAA compliant.
