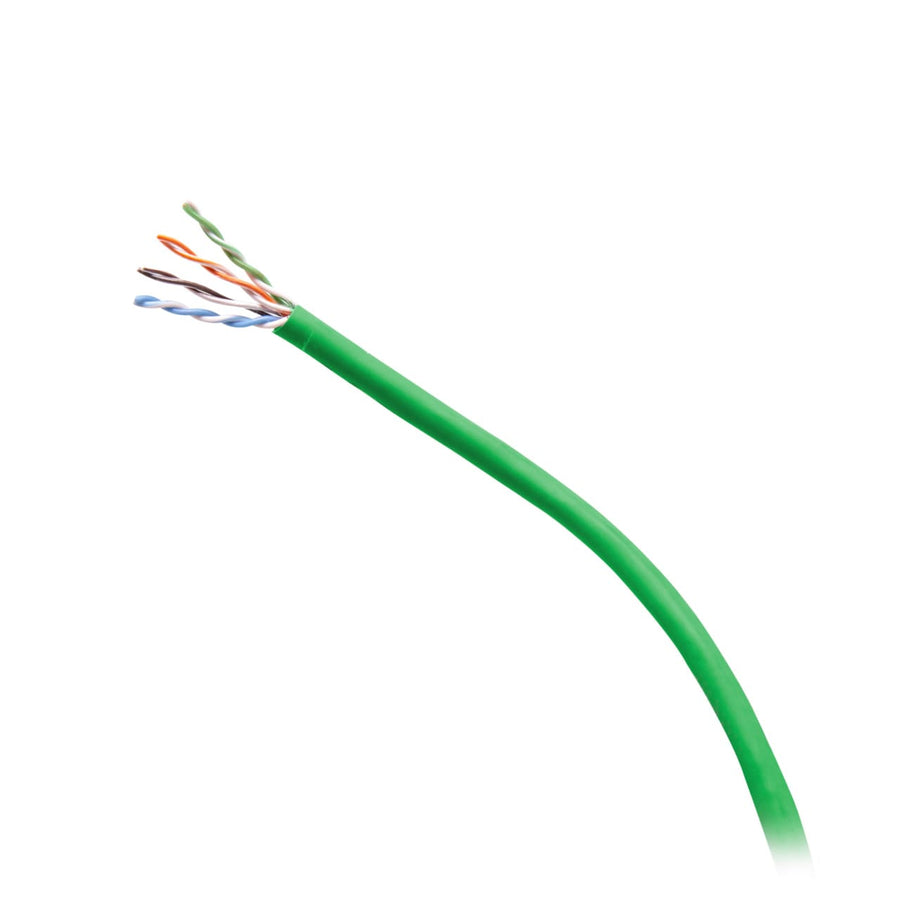

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Riser CMR-Rated - Green
1000ft spool of Cat6 UTP bulk cable, CMR-rated for vertical riser applications, featuring 23 AWG solid copper conductors in a green jacket
C2G56035 is a 1000 ft (304.8 m) spool of Category 6 Unshielded Twisted Pair (UTP) bulk Ethernet network cable designed for professional LAN installations. This cable features solid copper conductors with a 23 AWG wire gauge and polyolefin (PO) insulation. It is specifically designed for vertical riser applications as a CMR-rated cable, making it suitable for in-wall installation paths that travel between floors. The jacket is constructed from Flame Retardant Polyvinyl Chloride (FRPVC) in a green color. This bulk cable is TAA compliant and carries UL, CE, and RoHS certifications. For high-performance networking, this cable meets ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards. The cable has a diameter of 0.21 in (5.4 mm) and maintains a bend radius of 0.85 in (21.6 mm). It is rated for operating temperatures ranging from -4° - 140°F (-20° - 60°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.85 in (21.6 mm) |
| Cable Diameter | 0.21 in (5.4 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 26.4 lbs (12 kg) |
| Shipping Weight | 25.07 lbs (11.4 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | PO (Polyolefin) |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560357 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | FRPVC (Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
6-Port Cat6 Network Interface Module
AC1013$109.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is this cable suitable for plenum spaces?
This is a CMR-rated Riser cable, meaning it is designed for vertical riser applications within walls. For plenum spaces, you would require a CMP-rated cable instead.
What standards does this cable meet?
Yes, this is a Category 6 UTP cable that meets ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 performance standards.
Is the C2G56035 TAA compliant?
Yes, this 1000ft spool of Cat6 bulk cable is TAA compliant and carries UL, CE, and RoHS certifications.
What are the physical dimensions and bend radius of the cable?
The cable has a 0.21 in (5.4 mm) diameter and a minimum bend radius of 0.85 in (21.6 mm).
What accessories are compatible with this Cat6 cable?
This cable is compatible with various termination components including the CG29746 RJ45 UTP Keystone Jack and the AC1013 Cat6 Network Interface Module.
