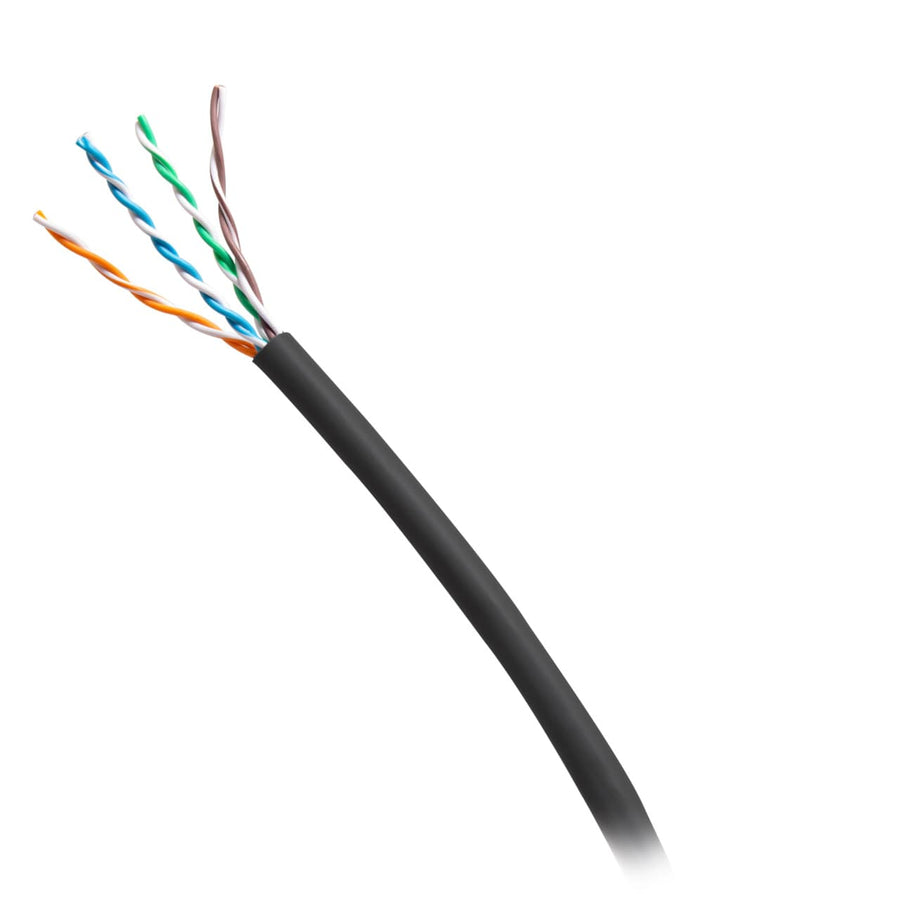

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Riser CMR-Rated - Black
1000ft Cat6 bulk UTP cable, CMR-rated for riser applications, with black FRPVC jacket and solid copper conductors
C2G56032 is a 1000 ft (304.8 m) bulk Cat6 Ethernet network cable designed for professional vertical riser applications. This unshielded twisted pair (UTP) cable features a CMR-rated flame-retardant polyvinyl chloride (FRPVC) jacket, making it suitable for in-wall installations that require riser performance. Each cable is constructed with 23 AWG solid copper conductors and polyolefin (PO) insulation to ensure consistent signal integrity across your network infrastructure. The cable carries a 0.21 in (5.4 mm) diameter and maintains a 0.85 in (21.6 mm) bend radius. This TAA-compliant bulk cable is rated for operation in temperatures ranging from -4°F (-20°C) to 140°F (60°C). For large-scale deployments, this black bulk cable provides a reliable solution for standard LAN installations requiring high-performance Category 6 connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.85 in (21.6 mm) |
| Cable Diameter | 0.21 in (5.4 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 26.4 lbs (12 kg) |
| Shipping Weight | 25.07 lbs (11.4 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | PO (Polyolefin) |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560326 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | FRPVC (Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
6-Port Cat6 Network Interface Module
AC1013$109.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is the C2G56032 suitable for plenum spaces?
No, this is a CMR-rated riser cable. For plenum spaces, you would need a CMP-rated cable.
What type of conductors does this Cat6 cable use?
This cable utilizes 23 AWG solid copper conductors for standard network connectivity.
Can I use this for in-wall installations?
Yes, the CMR rating makes this suitable for vertical riser and in-wall installations.
What accessories are compatible with this cable?
It is compatible with various C2G components, including the CG29311 Cat6 RJ45 UTP Keystone Jack and the 24845CC6 24-Port Rack Mount Patch Panel.
What is the compliance status of this bulk cable?
The C2G56032 is TAA-compliant and carries UL, CE, and RoHS certifications.
