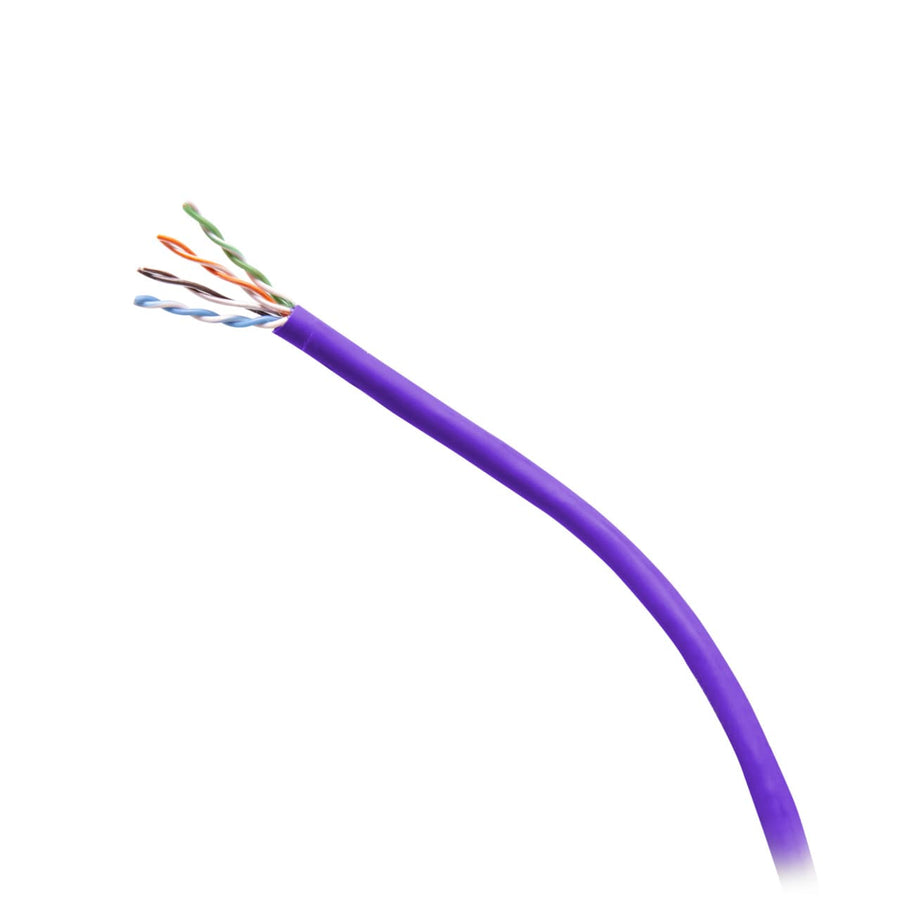

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Plenum CMP-Rated - Purple
1000ft Purple Cat6 UTP bulk cable, plenum-rated (CMP) with solid copper conductors for professional network installations
C2G56046 is a 1000 ft (304.8 m) bulk Cat6 Ethernet network cable designed for professional infrastructure deployments. This unshielded twisted pair (UTP) cable features solid copper conductors and a 23 AWG wire gauge, ensuring reliable high-speed data transmission. The purple jacket is CMP-rated, making it suitable for use in plenum spaces where low smoke, flame-retardant (LSFRPVC) materials are required by building codes. This TAA-compliant cable is built to meet ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards. It is constructed with FEP (Fluorinated Ethylene Propylene) insulation and is rated for operating temperatures between -4°F (-20°C) and 140°F (60°C). For full system integration, this bulk cable is compatible with various C2G accessories, including the AC1013 6-Port Cat6 Network Interface Module and the CG29311 Cat6 RJ45 UTP Keystone Jacks. This cable is UL Listed and CE certified.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.79 in (20 mm) |
| Cable Diameter | 0.2 in (5 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 26 lbs (11.8 kg) |
| Shipping Weight | 25.79 lbs (11.7 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560463 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
6-Port Cat6 Network Interface Module
AC1013$109.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is the C2G56046 suitable for plenum air spaces?
Yes, this cable is CMP-rated and features an LSFRPVC jacket, making it compliant for installation in plenum environments.
What type of conductor does this Cat6 cable use?
This bulk cable uses 23 AWG solid copper conductors to support Category 6 performance standards.
Is this C2G bulk cable TAA compliant?
Yes, the C2G56046 is TAA-compliant, making it suitable for projects requiring Trade Agreements Act adherence.
What termination hardware is compatible with this cable?
It is compatible with several C2G components, such as the AC1013 6-Port Cat6 Network Interface Module and CG29311 Cat6 RJ45 UTP Keystone Jacks.
What is the operating temperature range for this cable?
The cable is designed to operate in temperatures ranging from -4°F (-20°C) to 140°F (60°C).
