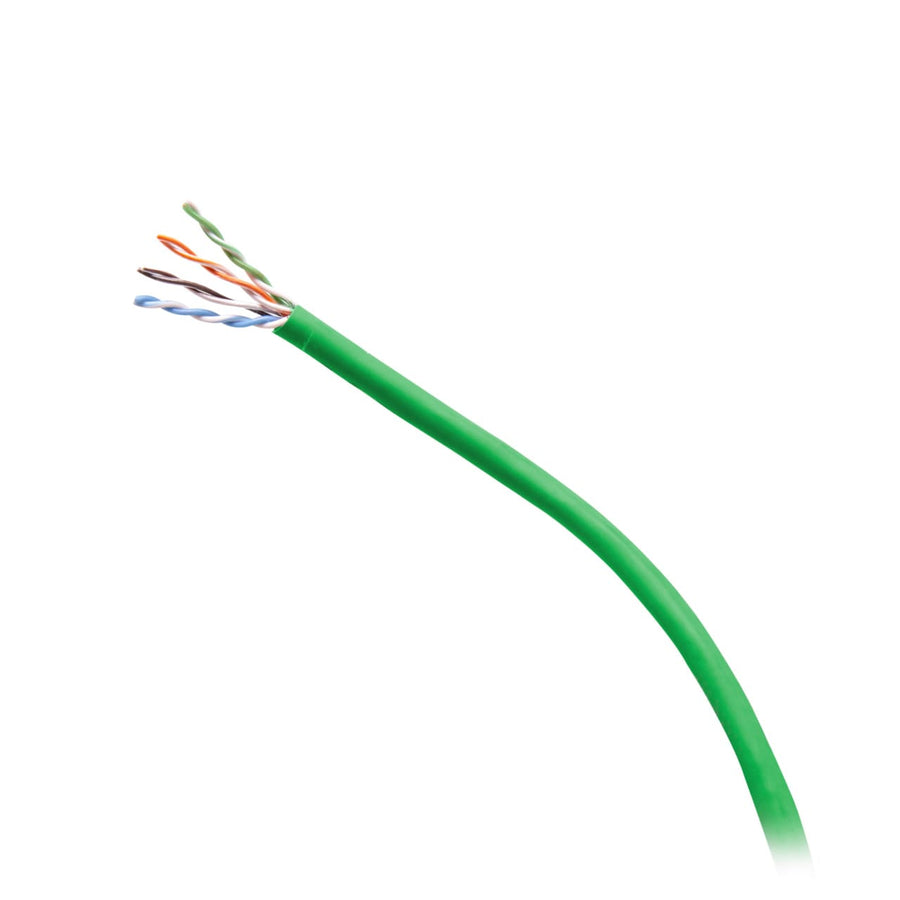

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Plenum CMP-Rated - Green
1000ft spool of Cat6 UTP bulk cable, CMP plenum-rated, green jacket, with 23 AWG solid copper conductors
C2G C2G56045 is a 1000ft (304.8 m) bulk Cat6 Ethernet network cable designed for professional infrastructure deployments. This unshielded twisted pair (UTP) cable features 23 AWG solid copper conductors to ensure reliable signal transmission in high-performance LAN environments. It is specifically designed for use in plenum spaces, carrying a CMP rating and utilizing LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) jacket material for compliance with strict fire safety requirements in air-handling environments. This cable is TAA-compliant, making it suitable for government and sensitive commercial projects requiring verified supply chain origins. The green jacket allows for easy identification within complex cable management systems. This bulk cable is rated for operating temperatures between -4°F (-20°C) and 140°F (60°C), making it versatile for various environmental conditions. It complies with ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards, ensuring it meets international performance benchmarks for Category 6 cabling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.79 in (20 mm) |
| Cable Diameter | 0.2 in (5 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 26 lbs (11.8 kg) |
| Shipping Weight | 25.79 lbs (11.7 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560456 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
6-Port Cat6 Network Interface Module
AC1013$109.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is this C2G C2G56045 cable suitable for plenum spaces?
Yes, this cable is CMP-rated and features a Low Smoke Flame Retardant Polyvinyl Chloride (LSFRPVC) jacket, specifically designed for use in plenum environments.
Does this C2G bulk cable meet TAA requirements?
Yes, the C2G56045 is TAA-compliant, making it an option for projects requiring specific supply chain compliance.
What termination requirements do I need for this Cat6 cable?
This is a bare wire bulk cable with 23 AWG solid copper conductors, designed for termination into jacks, patch panels, or modules like the CG29746 Keystone Jack.
What accessories are compatible with this Cat6 cabling?
This cable is compatible with a wide range of components, including the 24-Port Rack Mount Patch Panel (24845CC6) and various Keystone modules like the AC1013 Cat6 Network Interface Module.
What is the temperature rating for this bulk cable?
The cable is designed to operate in temperatures ranging from -4°F (-20°C) up to 140°F (60°C).
