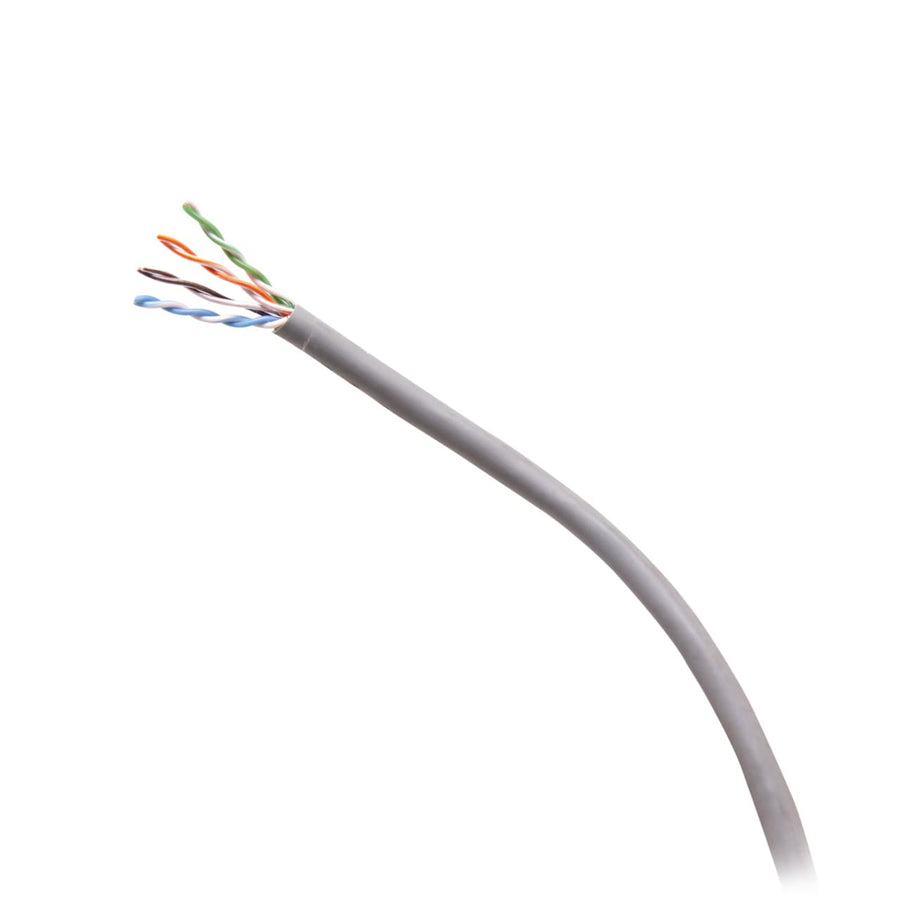

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Plenum CMP-Rated - Gray
1000ft spool of Cat6 UTP plenum-rated bulk cable with solid copper conductors and a gray jacket
C2G56043 is a 1000ft (304.8 m) spool of Cat6 unshielded (UTP) bulk Ethernet network cable designed for high-performance data environments. This cable features 23 AWG solid copper conductors, ensuring reliable signal transmission for standard LAN installations. The jacket is CMP-rated for plenum spaces and constructed from LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride), making it suitable for air-handling environments. This TAA-compliant cable is UL listed and meets ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards. With an operating temperature range of -4° - 140°F (-20° - 60°C), it maintains performance across various climates. The cable has a diameter of 0.2 in (5 mm) and a minimum bend radius of 0.79 in (20 mm), facilitating manageable installation in tight raceways or conduits. This gray bulk cable is a professional-grade solution for installers requiring plenum-rated, solid conductor Cat6 cabling for large-scale infrastructure projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.79 in (20 mm) |
| Cable Diameter | 0.2 in (5 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 26 lbs (11.8 kg) |
| Shipping Weight | 25.79 lbs (11.7 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560432 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
6-Port Cat6 Network Interface Module
AC1013$109.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is this Cat6 cable suitable for plenum spaces?
Yes, this cable is CMP-rated and uses a Low Smoke Flame Retardant Polyvinyl Chloride (LSFRPVC) jacket, making it specifically designed for plenum-rated applications.
What type of conductors are used in the C2G56043?
The C2G56043 features 23 AWG solid copper conductors, which provide superior performance for standard Ethernet network installations compared to stranded options.
Is this cable TAA compliant for government contracts?
Yes, the C2G56043 is TAA compliant and is UL listed, making it suitable for projects requiring specific procurement compliance.
What accessories are compatible with this bulk cable?
This bulk cable can be terminated with various components such as the CG29746 RJ45 UTP Keystone Jack or used with the 24845CC6 Cat6 24-Port Rack Mount Patch Panel.
What is the minimum bend radius for installation?
The cable has a minimum bend radius of 0.79 in (20 mm) to ensure optimal signal integrity during installation.
