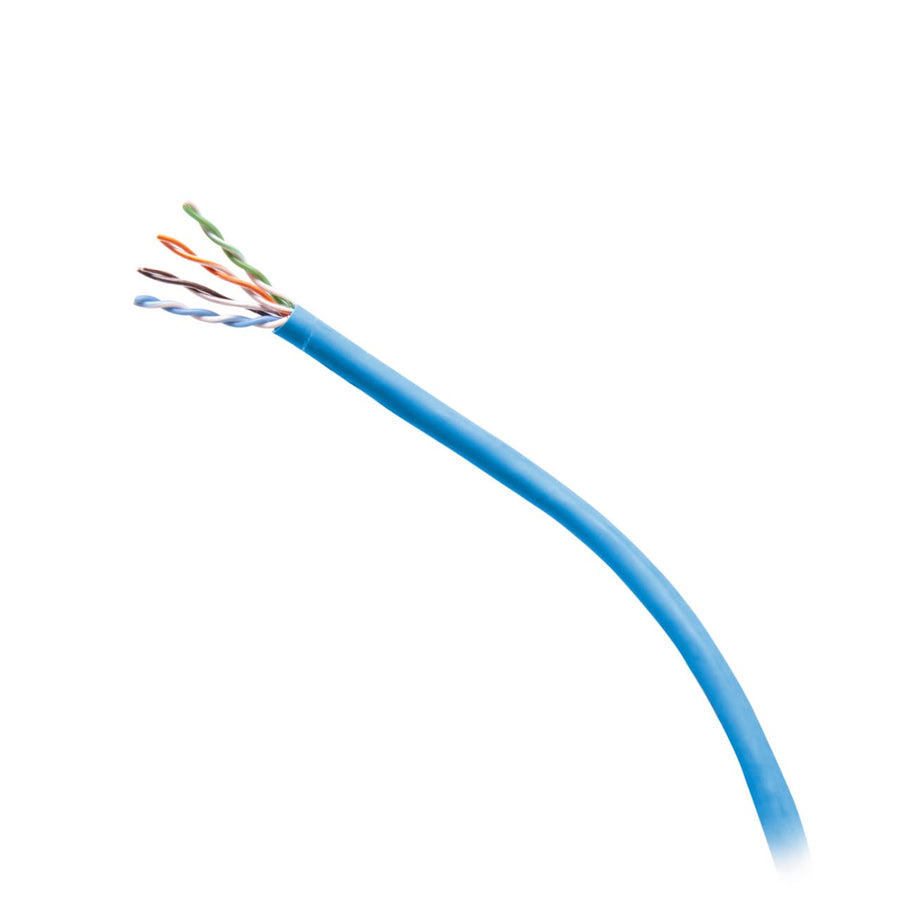

1000ft (304.8m) TAA-Compliant Cat6 Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Plenum CMP-Rated - Blue
1000ft spool of Blue Cat6 UTP bulk cable, CMP-rated for plenum air spaces and TAA compliant
The C2G C2G56041 is a 1000 ft (304.8 m) spool of Category 6 Unshielded Twisted Pair (UTP) bulk Ethernet network cable designed for professional infrastructure installations. This blue cable features solid copper conductors and is rated for plenum environments as a CMP-rated solution, making it suitable for use in air handling spaces. It is constructed with 23 AWG wire gauge and uses FEP (Fluorinated Ethylene Propylene) insulation to ensure reliable performance. The jacket is made of Low Smoke Flame Retardant Polyvinyl Chloride (LSFRPVC). This TAA-compliant cable is UL Listed and meets ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards. It operates within a temperature range of -4°F to 140°F (-20°C to 60°C) and is rated for 300 V. For large-scale network deployments, this bulk cable provides a high-performance foundation for LAN installations where plenum rating is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.79 in (20 mm) |
| Cable Diameter | 0.2 in (5 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 26 lbs (11.8 kg) |
| Shipping Weight | 27.86 lbs (12.6 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560418 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
6-Port Cat5e Network Interface Module
AC1012$59.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
6-Port Cat6 Network Interface Module
AC1013$109.99
Cat6 RJ45 UTP Keystone Jack - White
CG29311$9.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
Questions about this part
Is the C2G56041 suitable for plenum air spaces?
Yes, this is a CMP-rated cable, which is specifically designed for use in plenum environments and air handling spaces.
What is the conductor type for this Cat6 bulk cable?
The C2G56041 features solid copper conductors with a 23 AWG wire gauge.
Is this cable TAA compliant for government contracts?
Yes, this C2G56041 bulk cable is TAA compliant and carries UL, CE, and RoHS certifications.
What accessories are compatible with this network cable?
This cable can be terminated into various components like the AC1013 6-Port Cat6 Network Interface Module or the CG29311 Cat6 RJ45 UTP Keystone Jack.
What is the operating temperature range for the C2G56041?
This cable is rated for operating temperatures between -4°F (-20°C) and 140°F (60°C).
