0.5ft (0.15m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
0.5 ft (0.2 m) Cat6a snagless UTP patch cable, yellow, for 10GBase-T networking

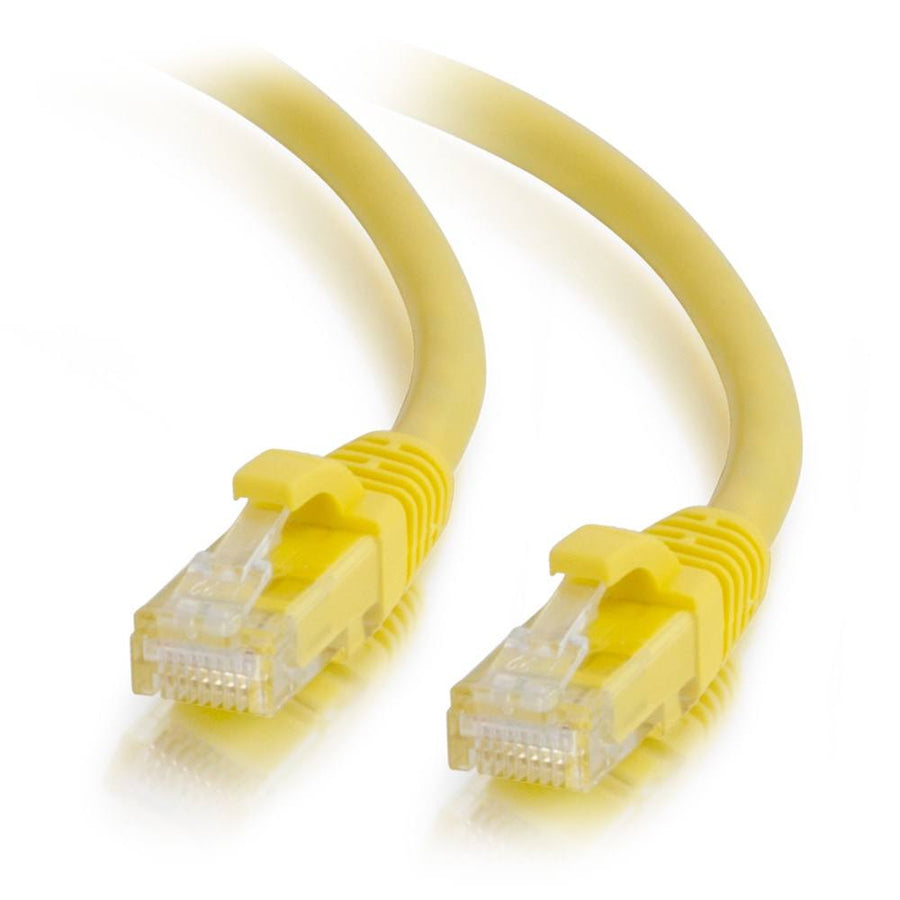

The C2G CG50740 is a 0.5 ft (0.2 m) Cat6a snagless unshielded UTP Ethernet network patch cable designed for 10GBase-T ports and high-speed network equipment. This yellow cable facilitates 10 Gigabit data transmission over a 4-pair copper configuration, supporting connections up to 100 meters. It is specifically engineered to improve alien crosstalk performance in high-density environments. The snagless hood design is optimized for use in high-density switch applications, protecting the connection during installation and servicing. Constructed with 26AWG bare stranded copper conductors and HDPE insulation, this cable meets ANSI/TIA 568 C.2 Cat6a channel requirements. This SKU is part of the Cat6a Patch Cable series and features a PVC jacket and hood. It is ideal for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels where short-length cable management is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507406 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Is the C2G CG50740 suitable for 10 Gigabit Ethernet?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over a 4-pair copper cable.
What is the difference between this and a standard Cat6 cable?
While standard Cat6 cabling may only support 10 Gigabit Ethernet over limited distances, this Cat6a cable is tested to meet ANSI/TIA 568 C.2 requirements.
Will this cable work in high-density patch panels?
The snagless hood on the CG50740 is specifically designed for high-density switch and patch panel applications to improve serviceability.
What accessories are compatible with this cable type?
This cable is compatible with various Cat6a components, including the WP346AYE Yellow Quick Connect Keystone Insert and the WP246A 24-Port Rack Mount Patch Panel.
What is the wiring scheme for this patch cable?
This C2G patch cable follows the 568B wiring scheme for standard network connectivity.
