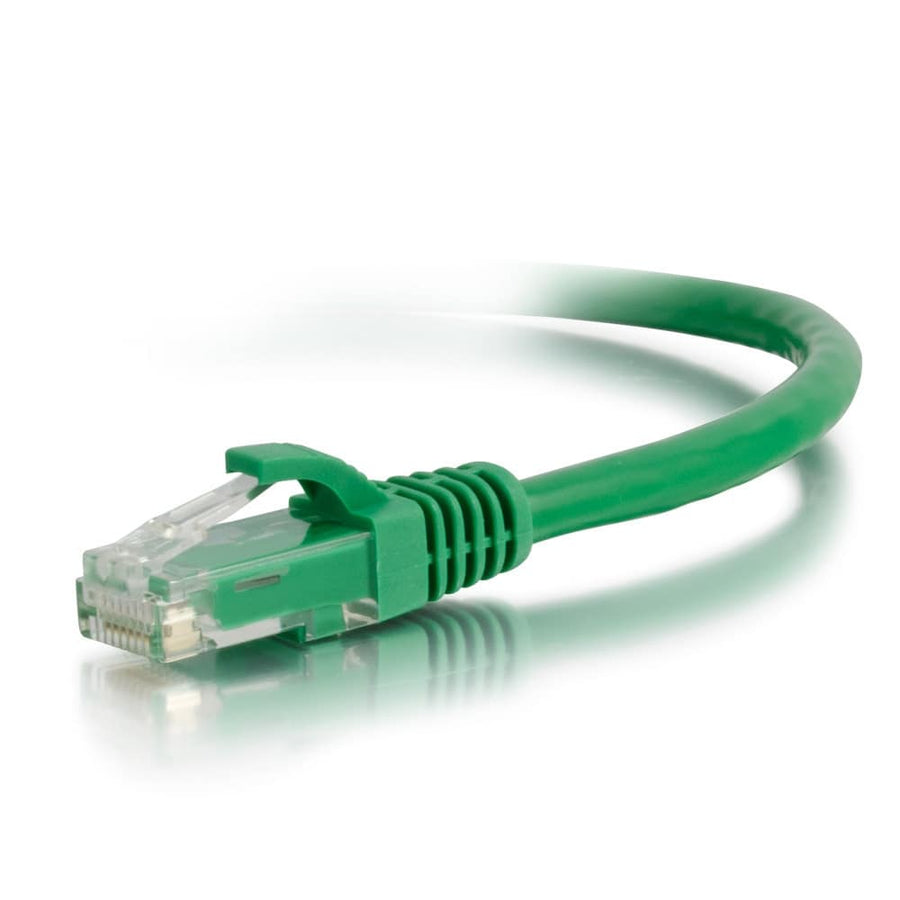

0.5ft (0.15m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
0.5 ft (0.2 m) Cat6a snagless UTP Ethernet patch cable in green, suitable for 10GBase-T high-density switch connections
The C2G CG50778 is a 0.5 ft (0.2 m) Cat6a snagless UTP Ethernet network patch cable designed to facilitate 10 Gigabit data transmission. This cable is optimized for 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels. Featuring a stranded copper conductor and 26AWG wire gauge, it is constructed to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The snagless boot design makes it specifically suited for high-density switch applications where space is limited. With an unshielded UTP construction and an HDPE insulation material, this cable is built to improve alien cross talk performance. This green cable features an RJ-45 male to RJ-45 male connector configuration and a PVC jacket with a 0.24 in (6 mm) diameter. It is rated for temperatures up to 75°C and is fully tested for Cat6a performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507789 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum distance for 10 Gigabit transmission with the CG50778?
This Cat6a patch cable enables connections up to 100 meters for 10 Gigabit data transmission.
Is this cable suitable for high-density network switches?
Yes, the snagless hood design is specifically intended to assist with connectivity in high-density switch applications.
What is the wiring scheme for this C2G patch cable?
This green Cat6a cable uses the 568B wiring scheme for standardized connectivity.
What accessories are compatible with this Cat6a cable?
This cable is compatible with various Cat6a components, including the WP246A 24-Port Rack Mount Patch Panel and the WP346AGN Green Keystone Insert.
Does this cable meet industry performance standards?
The CG50778 is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
