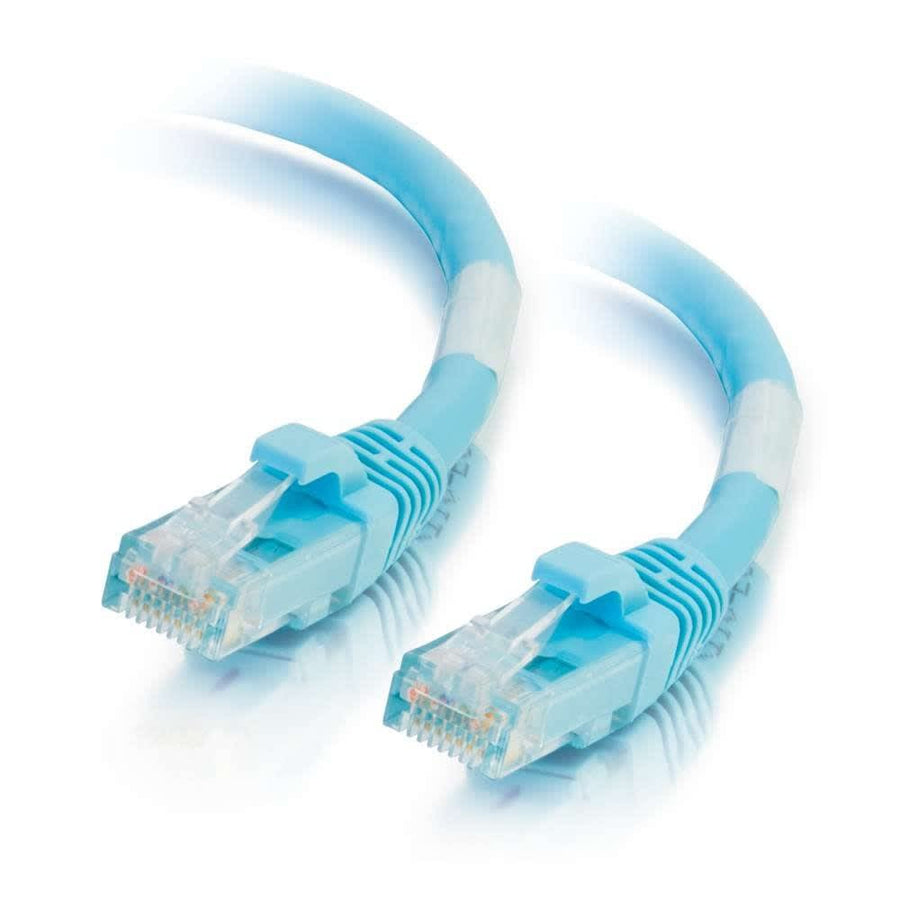

0.5ft (0.15m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
Aqua Cat6a snagless UTP patch cable, 0.5 ft (0.2 m) length, optimized for 10GBase-T high-density switch applications
The C2G CG00978 is a 0.5 ft (0.2 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in Aqua. This cable is engineered to support 10 Gigabit data transmission over a 4-pair copper conductor, facilitating high-speed connections for equipment such as network adapters, hubs, switches, routers, and patch panels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance in demanding environments. The construction features stranded bare copper conductors with 26AWG wire gauge and HDPE insulation, which provides improved alien crosstalk performance compared to standard Cat6 cabling. The snagless, booted RJ-45 male connectors are designed to protect the termination and are ideal for high-density switch applications where space is limited. This unshielded UTP cable is rated for temperatures up to 75°C and uses a PVC jacket and hood. For easy network organization, this Aqua cable can be part of a color-coded system, and each individual unit includes a length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009788 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will the CG00978 work with my 10 Gigabit switch?
Yes, this Cat6a patch cable is specifically designed for use with 10GBase-T ports and equipment, providing the necessary bandwidth for 10 Gigabit data transmission.
What is the difference between this and a standard Cat6 cable?
Unlike standard Cat6, this Cat6a cable is tested to ANSI/TIA 568 C.2 Cat6a channel requirements and offers improved alien crosstalk performance for 10 Gigabit applications.
Is the CG00978 suitable for high-density patch panels?
Yes, the snagless hood design on the RJ-45 connectors makes this cable ideal for high-density switch and patch panel applications where space is at a premium.
What other components are compatible with Cat6a systems?
This cable is compatible with various Cat6a accessories, including the AC106A6 6-Port Cat6A Network Interface Module and the WP246A 24-Port Rack Mount Patch Panel.
What is the wiring scheme for this patch cable?
The CG00978 is wired using the 568B scheme for reliable connectivity in network installations.
