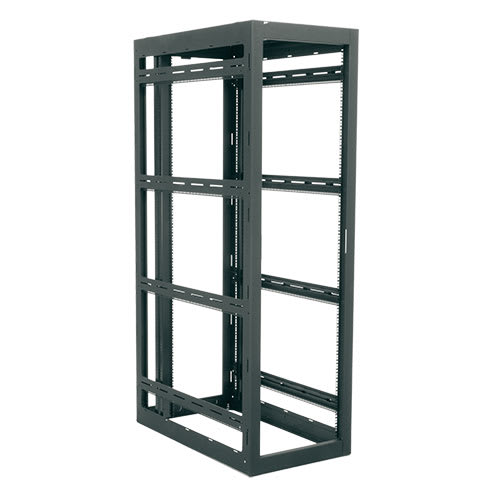

WMRK Series 24 Inches Wide Rack - WMRK-4248
24-inch wide 42 RU floor-standing seismic rack, 48 inches deep, with a 10,000 lbs weight capacity
The WMRK-4248 is a 42 RU floor-standing enclosure designed specifically for mounting deep equipment in raised-floor environments. With a 24-inch overall width, this rack is optimized for standard raised-floor installations, providing a 45.5 in (115.6 cm) usable depth to accommodate deep servers and large-format hardware. This frame-only configuration features fully welded construction for maximum stability and a 10,000 lbs (4535.9 kg) total weight capacity. It is a seismic-rated solution, carrying ASCE 7-10 certification and a seismic load capacity of 1090 lbs (494.4 kg), making it suitable for high-demand environments. The rack utilizes cage nut mounting rails and includes two pairs of adjustable cage nut rackrails along with one pair of z-rail sidemount adaptors. These adaptors are configured to accept servers and slide kits from all leading manufacturers, ensuring compatibility with various professional hardware. For installation, the unit is gangable, allowing multiple racks to be joined together when fully loaded.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 79.81 in (202.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 200 lbs (90.7 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 45.5 in (115.6 cm) |
| Usable Height | 73.5 in (186.7 cm) |
All other specifications 13
| Weight Capacity | 10000 lbs (4535.9 kg) |
| Width | 23.94 in (60.8 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| Side Panel | No |
| TAA Compliant | Yes |
| UPC | 656747099779 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 1090 lbs (494.4 kg) |
Resources
You'll need these with it
40 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-40-OWP$388.80
1 RU Flat Blank Rack Panel, Aluminum
PHBL-1$19.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
42 RU Vented Front Door for WMRK Racks, 64% Open
LVFD-WMRK-42$891.00
42 RU Split Vented Door for WMRK Racks
CLVRD-WMRK-42$918.90
42 RU Side Panels for 48 Inch Deep WMRK Racks
SPN-42-48$1,566.00
42 RU Solid Front Door for WMRK Racks
FD-WMRK-42$528.30

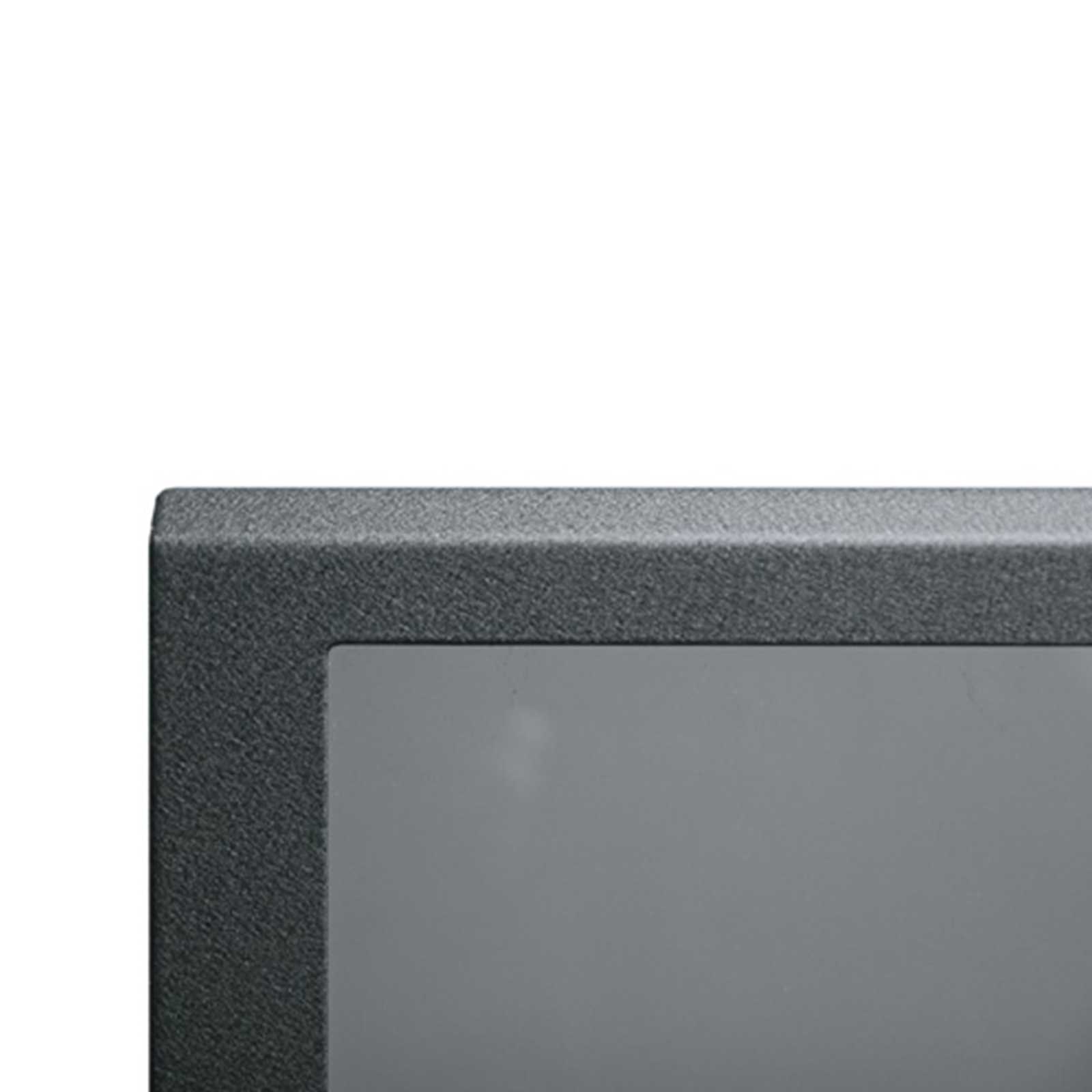

42 RU Plexi Front Door for WMRK Racks with Handle Knockout
PFD-WMRK-42LH
40 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-40-OP$335.70
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Questions about this part
Will this WMRK-4248 rack fit my deep servers in a raised floor?
Yes, the 24-inch wide WMRK series is optimized for raised floors and provides 45.5 in (115.6 cm) of usable depth to accommodate deep equipment.
What accessories do I need to complete this rack setup?
This is a frame-only unit. You will need to purchase items such as SPN-42-48 side panels, LVFD-WMRK-42 front doors, or PHBL-1 blank panels.
Is the WMRK-4248 seismic rated for high-demand environments?
Yes, this model is seismic rated with an ASCE 7-10 certification and a seismic load capacity of 1090 lbs (494.4 kg).
Can I attach multiple WMRK racks together?
Yes, the WMRK-4248 is a gangable enclosure, meaning multiple racks can be joined together when fully loaded.
What documentation is available for submittals?
You can access the WMRK Series Enclosure A&E Specification Sheet or the Seismic Certification Letter for technical submittals.
