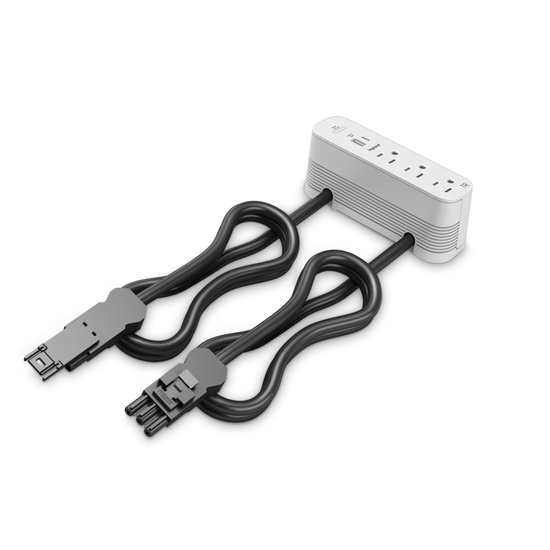

Wiremold ModPower™ Middle Unit, On Surface, White
White on-surface middle unit for ModPower systems, featuring 3 tamper-resistant 5-15R receptacles and integrated overcurrent protection
The Wiremold MDCA3-WH is a ModPower Middle Unit designed for on-surface installation in workstations, training spaces, or flexible furniture environments. This white module provides three 5-15R tamper-resistant receptacles, which help protect against accidental contact. This unit is part of a modular system that allows installers to connect up to six power units together to create a customized power distribution solution. It is UL 962A spill water compliant, making it suitable for use on horizontal surfaces like tabletops. To ensure safety in portable or movable workspaces, this unit includes an integrated circuit breaker for supplementary overcurrent protection. This on-surface version can be mounted either above or below the table surface using wood screws or clamps for a damage-free installation. The unit includes a 3 ft (0.9 m) cord for connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cord Length | 3 ft (0.9 m) |
| Shipping Dimensions | 6.13" x 1.75" x 2.5" (155.8 x 44.5 x 63.5 mm) |
| Available Internationally | No |
| Color | White |
| Outlet Count | 3 |
| Receptacle Type | 5-15R |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the MDCA3-WH work for a tabletop installation?
Yes, this unit is UL 962A spill water compliant, meaning it is approved for use on horizontal surfaces such as tabletops.
How many units can I connect in a ModPower system?
You can connect up to six ModPower power units together to create a complete system for your workspace.
What mounting options are available for this on-surface unit?
For on-surface installation, you can mount this unit using clamps for a damage-free install or by using wood screws.
Does this unit include overcurrent protection?
Yes, this unit utilizes a circuit breaker to provide supplementary overcurrent protection, as required by UL 962A Supplement SD.
Which document should I use for submittals?
You can refer to the ModPower™ System Cut Sheet (PDF) or the ModPower™ System (PDF) for technical documentation.
