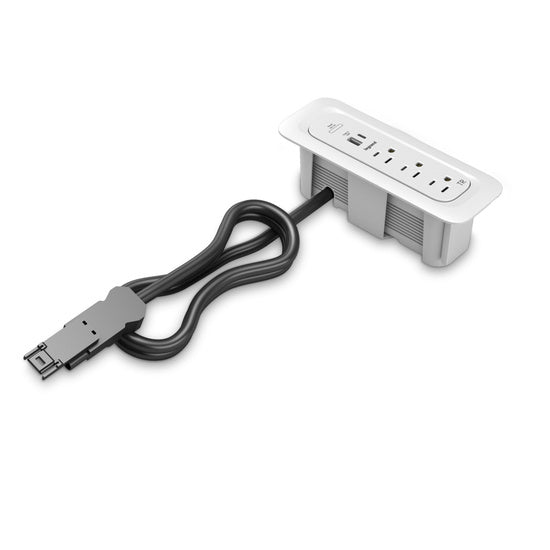

MDEF3-WH ModPower End Unit in Surface in White
In-surface furniture power end unit in White, featuring 3 tamper-resistant 5-15R receptacles and integrated circuit breaker protection
The MDEF3-WH is a ModPower End Unit designed for in-surface installation within workstations, training spaces, or flexible office environments. This white unit functions as the terminus for a modular power system, allowing you to connect up to six ModPower units together to create a continuous power run. It features three 5-15R tamper-resistant receptacles designed to protect against accidental contact. Because this unit is UL 962A spill water compliant, it is suitable for use on horizontal surfaces like tabletops. For installation, simply cut the opening in the furniture, insert the unit, tighten the clamps, and snap on the included bezel to hide the mounting screws. This unit includes a built-in circuit breaker to provide necessary overcurrent protection for portable or moveable workspace tables.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cord Length | 3 ft (0.9 m) |
| Shipping Dimensions | 11.1" x 8.1" x 3.2" (282 x 205.8 x 81.3 mm) |
| Available Internationally | No |
| Color | White |
| Outlet Count | 3 |
| Receptacle Type | 5-15R |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
How do I install the MDEF3-WH in furniture?
Installation is a three-step process: cut the opening in the surface, insert the unit and tighten the clamps, then snap on the bezel to cover the mounting screws.
Can this unit be used on a tabletop?
Yes, this model has passed UL 962A spill water test requirements, making it safe for use on horizontal surfaces like tabletops.
Does this unit provide overcurrent protection?
Yes, the MDEF3-WH includes a built-in circuit breaker to meet UL962A Supplement SD requirements for furniture power distribution.
How many units can I connect in a single power run?
You can connect up to six ModPower units together to create a complete power system for your workstations or training spaces.
What is the cord length for this unit?
The unit features a 3 ft (0.9 m) cord length for connectivity within the modular system.
