Voyager Speaker/Conferencing Bar Accessory
White conferencing bar accessory for Voyager Floor-Carts, supporting 50–75" display configurations

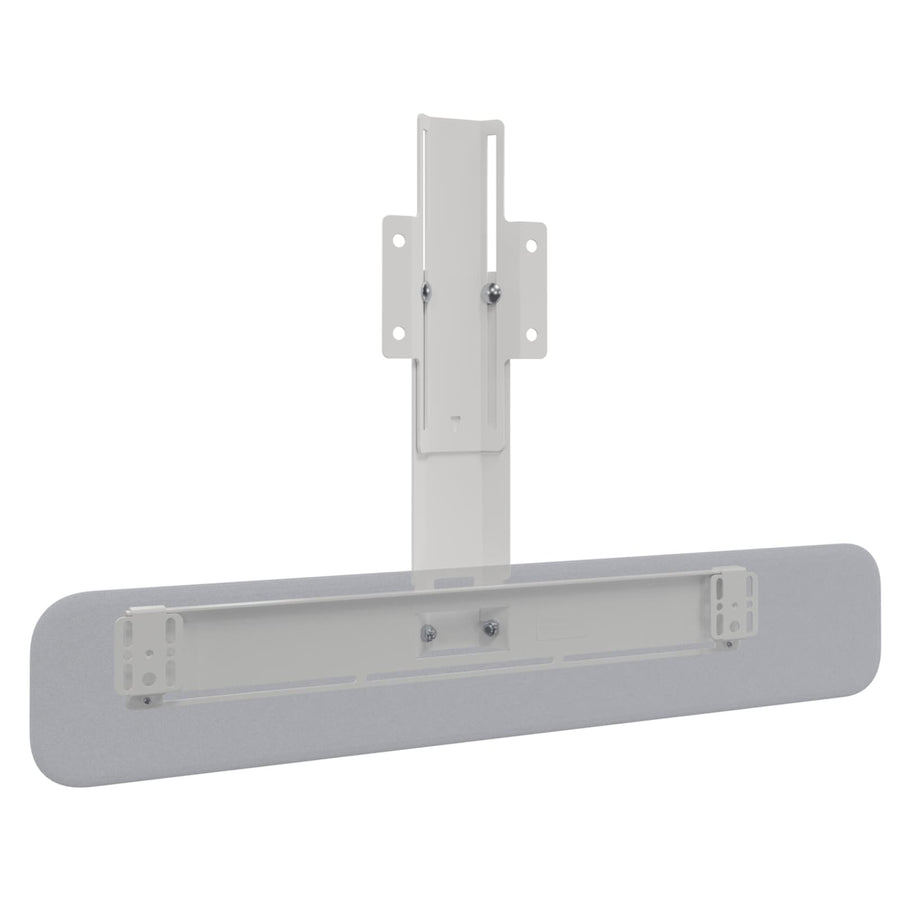

The Chief SCASW is a white conferencing bar accessory designed for use with the Voyager Floor-Cart. This solution allows installers to easily attach a variety of popular speaker or conferencing sound bars either above or below the display. It is engineered specifically for the Voyager mobile system, providing a stable platform for audio hardware in interactive environments. This accessory features height adjustability to ensure proper alignment with the display and user eye levels. The unit has an overall dimension of 22.5" x 7.75" x 2.75" (572 x 197 x 70 mm) and supports a weight capacity of 15 lbs (6.8 kg). For system integrators managing procurement for government or sensitive projects, this component is TAA compliant and UL Listed. This white finish model is part of a larger series of Voyager accessories, including the SCSSW Voyager Storage Shelf and the SCACW Voyager Component/Video Conference Camera Shelf.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.75 in (19.7 cm) |
| Height | 2.75 in (7 cm) |
| Minimum Depth | 2.75 in (7 cm) |
| Overall Dimensions | 2.75" x 22.5" x 7.75" (70 x 572 x 197 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Typical Screen Size | 50" - 75" (1270mm - 1905mm) |
| Weight Capacity | 15 lbs (6.8 kg) |
| Width | 22.5 in (57.2 cm) |
All other specifications 11
| Accessory Type | Conferencing Shelves, Speaker Accessories |
| Adjustability | Height Adjustable |
| Application | Floor-Cart |
| Color | White |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| Special Features | Interactive |
| TAA Compliant | Yes |
| UPC | 841872176901 |
| Wired Data Rate | 22.5 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will this accessory fit my Voyager mobile cart?
Yes, the SCASW is specifically designed for application on the Voyager Floor-Cart.
Can I mount the sound bar above the screen?
Yes, this accessory allows you to attach conferencing sound bars either above or below the display.
What is the weight limit for this speaker accessory?
The SCASW supports a maximum weight capacity of 15 lbs (6.8 kg).
Is the SCASW TAA compliant?
Yes, this accessory is TAA compliant and UL Listed.
What other Voyager accessories are available?
In addition to this audio bar accessory, you can also use the SCSSW Voyager Storage Shelf and the SCACW Voyager Component/Video Conference Camera Shelf.
