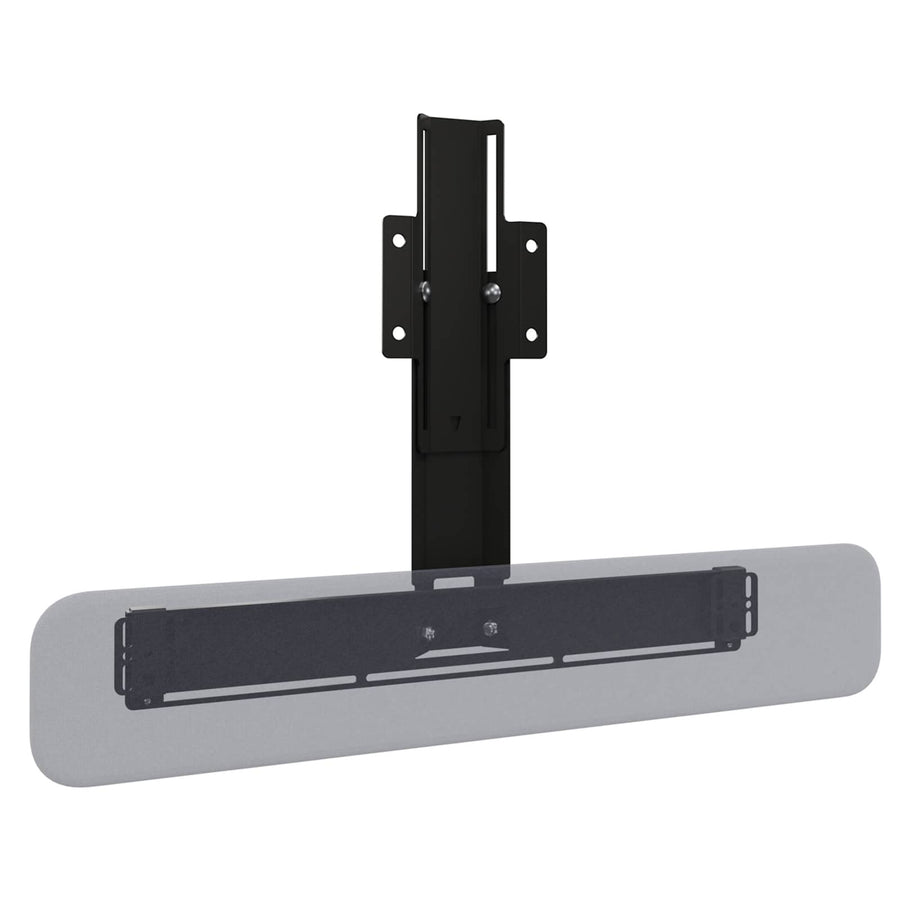

Voyager Speaker/Conferencing Bar Accessory
Universal sound bar accessory for Voyager Floor-Carts, supporting 50"–75" displays with manual height adjustment
The Chief SCASB is a specialized accessory designed to mount various popular speaker and conferencing sound bars to a Voyager Floor-Cart. This solution allows installers to position audio equipment either above or below the display to optimize sound dispersion for the room. It is engineered specifically for floor-cart applications, providing a stable platform for audio components that complement large-format displays. This accessory is compatible with typical screen sizes ranging from 50" to 75" (1270 mm - 1905 mm) and features manual height adjustment to ensure the sound bar is perfectly aligned with the listener's ear level or the display's orientation. The unit is TAA compliant and UL listed, making it suitable for government and high-compliance commercial environments. With an orientation of both landscape and portrait, it offers flexibility for diverse room layouts. The accessory has an overall dimension of 22.5" x 7.75" x 2.75" (572 x 197 x 70 mm) and supports a weight capacity of up to 15 lbs (6.8 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 7.75 in (19.7 cm) |
| Height | 2.75 in (7 cm) |
| Manual Height Adjustment | Yes |
| Minimum Depth | 2.75 in (7 cm) |
| Overall Dimensions | 2.75" x 22.5" x 7.75" (70 x 572 x 197 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Typical Screen Size | 50" - 75" (1270mm - 1905mm) |
| Weight Capacity | 15 lbs (6.8 kg) |
All other specifications 12
| Width | 22.5 in (57.2 cm) |
| Accessory Type | Conferencing Shelves, Speaker Accessories |
| Adjustability | Height Adjustable |
| Application | Floor-Cart |
| Color | Black |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| Special Features | Interactive |
| TAA Compliant | Yes |
| UPC | 841872176895 |
| Wired Data Rate | 22.5 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the SCASB work with my Voyager Floor-Cart?
Yes, the SCASB is designed specifically for use with the Voyager Floor-Cart application.
Can I adjust the height of the sound bar once installed?
Yes, this accessory includes manual height adjustment to allow for precise positioning relative to the display.
What is the maximum weight for a sound bar on this shelf?
The SCASB has a weight capacity of 15 lbs (6.8 kg).
Does this accessory support portrait orientation?
Yes, the SCASB is designed to support both landscape and portrait display orientations.
Which documents are available for submittals?
You can download the SCAS CAD Drawing, Technical Drawing, or the Installation Manual via the Resources tab for your submittals.
