VCM52D
Heavy-duty projector mount supporting up to 250 lbs (113.4 kg) with independent adjustment capabilities

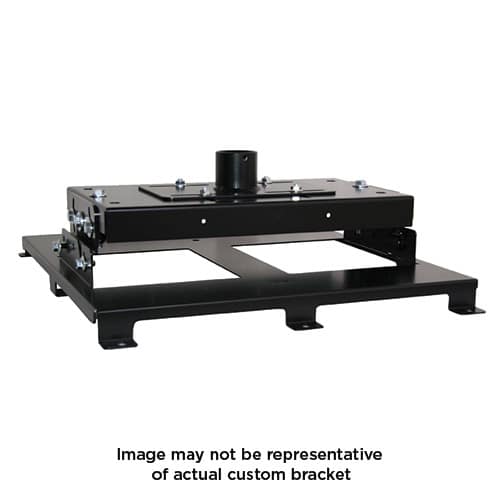

The Chief VCM52D is a heavy-duty mounting solution designed to provide secure support for heavy LCD/CRT projectors. With a weight capacity of 250 lbs (113.4 kg), this mount is built for demanding professional installations. It features independent roll, pitch, and yaw adjustments, allowing installers to achieve quick and precise projector registration. This model facilitates easy maintenance through quick connect/disconnect features for accessing lamps and filters on most projectors. For cable management, it includes integrated routing through the top of the mount without requiring additional accessories. This TAA compliant mount offers versatile installation configurations, including flush mounting to a ceiling, using 0.5" threaded rods, or utilizing a 1.5" NPT extension column.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Weight Capacity | 250 lbs (113.4 kg) |
| Shipping Weight | 20 |
| Color | Black |
Resources
Questions about this part
How do I register the projector after installation?
The VCM52D features independent roll, pitch, and yaw adjustments to help you achieve quick and precise projector registration.
Can I access the lamp and filters easily?
Yes, the mount includes quick connect/disconnect features to provide convenient access to the lamp and filters on most projectors.
What are the mounting options for the VCM52D?
You can flush mount the unit to a ceiling, use 0.5" threaded rods, or install it using a 1.5" NPT extension column.
Do I need to buy extra accessories for cable management?
No, this mount includes cable management through the top of the mount without the need for additional accessories.
What do I need to do if I want to flush mount this projector?
To flush mount the VCM, you will need to refer to the LPK1.
