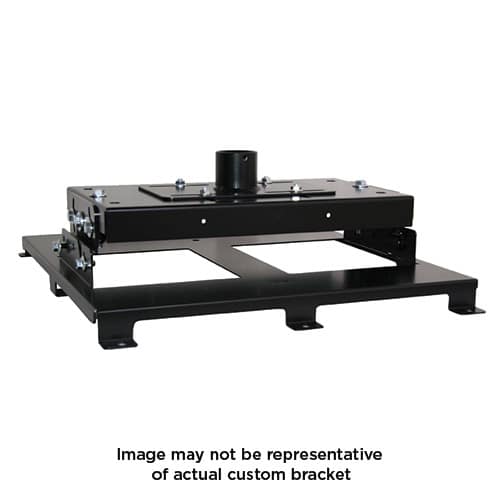

VCM016E
Heavy-duty projector mount supporting up to 250 lbs (113.4 kg) with integrated cable management and adjustable registration.
The Chief VCM016E is designed to provide robust support for mounting heavy LCD/CRT projectors. It features independent roll, pitch, and yaw adjustments, allowing installers to achieve quick and precise projector registration after the unit is mounted. For ceiling installations, this mount offers multiple configuration options: it can be flush mounted to the ceiling, used with 0.5" threaded rods, or paired with a 1.5" NPT extension column. Maintenance is simplified through a quick connect/disconnect feature that allows for convenient access to lamps and filters on most projector models. Additionally, cable management is integrated directly through the top of the mount, eliminating the need for additional accessories to hide wiring.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Weight Capacity | 250 lbs (113.4 kg) |
| Shipping Weight | 27.8 |
| Color | Black |
Resources
Questions about this part
What adjustments can be made once the projector is mounted?
The VCM016E allows for independent roll, pitch, and yaw adjustments to assist with projector registration.
Does this mount include cable management?
Yes, it features integrated cable management through the top of the mount without requiring additional accessories.
Can I use an extension column with this mount?
Yes, this mount is compatible with a 1.5" NPT extension column or 0.5" threaded rods.
