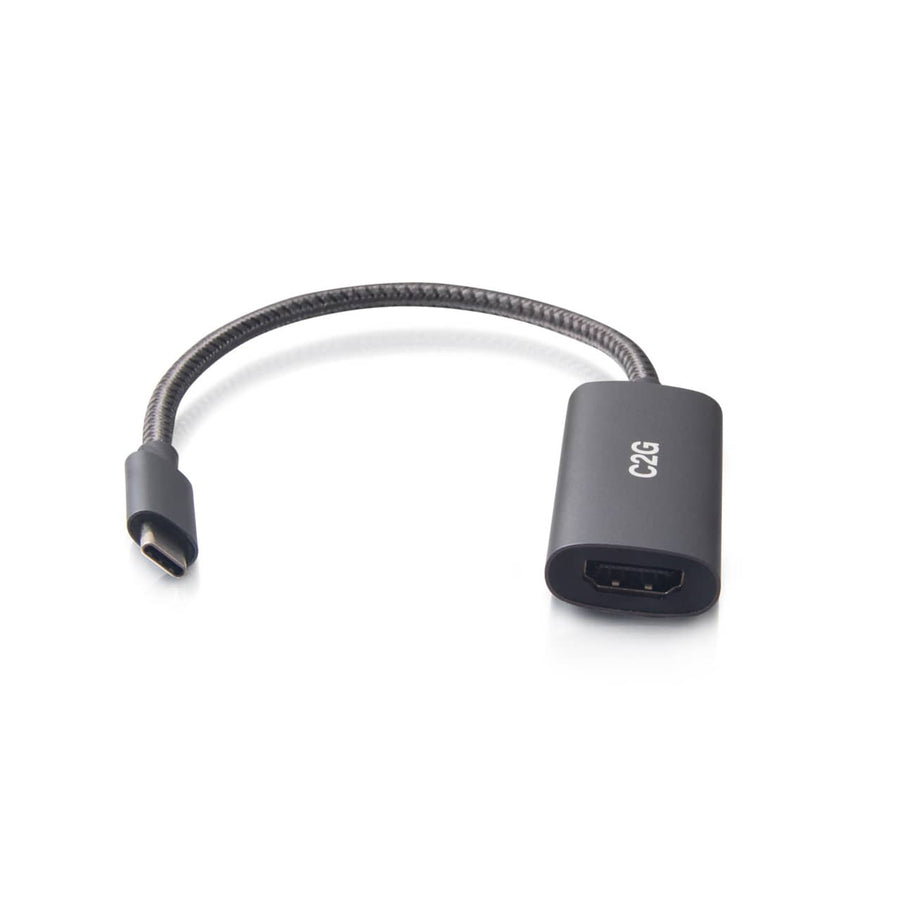

USB-C® to HDMI® Video Adapter - 8K 60Hz
USB-C to HDMI adapter supporting 8K at 60Hz with 48Gbps bandwidth for high-resolution video output
The C2G C2G54550 USB-C to HDMI adapter is designed for laptops and computers that lack a native HDMI port but require connection to an HDMI-equipped display. This converter supports video resolutions up to 8K at 60Hz, utilizing a bandwidth of up to 48Gbps to provide high-fidelity imagery for presentations, gaming, or media playback. The device features a compact 9.8 in (24.9 cm) cable length and a 0.18 in (4.6 mm) cable diameter with a PVC jacket. It operates within a temperature range of 32° to 104°F (0° to 40°C). To complete the connection, an HDMI cable is required; compatible options include the C2G CG56782 or the C2G C2G10382 Performance Series Ultra Flexible Active High Speed HDMI cable. This adapter is TAA non-compliant and is covered by a 5-year warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.18 in (4.6 mm) |
| Cable Length | 9.8 in (24.9 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 0.07 lbs (0 kg) |
| Storage Temperature Max | 518 Fahrenheit (270 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | Black |
| Connector 1 | (1) USB-C Male |
All other specifications 6
| Connector 2 | (1) HDMI Female |
| TAA Compliant | No |
| UPC | 757120545507 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
You'll need these with it
10ft (3m) Core Series High Speed HDMI® Cable with Ethernet
CG56784$18.99
12ft (3.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10379$89.99
25ft (7.6m) Performance Series Ultra Flexible Active High Speed HDMI® Cable with Ethernet
C2G10382$139.99
3ft (0.9m) Core Series High Speed HDMI® Cable with Ethernet
CG56782$12.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
Questions about this part
What resolution does the C2G54550 support?
The adapter supports video resolutions up to 8K at 60Hz with a bandwidth of up to 48Gbps.
What do I need to buy to complete the setup?
You will need an HDMI cable to connect the adapter to your display, such as the C2G CG56783 or the C2G C2G10382 Performance Series cable.
Is the C2G54550 TAA compliant?
No, this specific SKU is not TAA compliant.
What is the warranty period for this adapter?
This product is backed by a 5-year warranty from C2G.
What are the operating temperature limits for use?
The adapter is rated for operating temperatures between 32°F (0°C) and 104°F (40°C).
