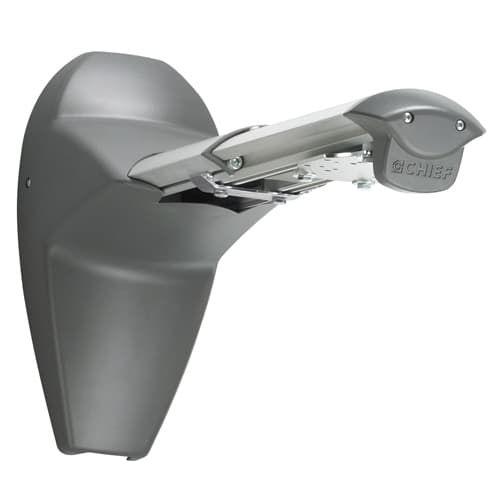

Ultra Short Throw Wall Mount (Single Stud)
Single stud wall mount for ultra short throw projectors with 11.3" - 18" extension and 50 lbs capacity
The Chief WM110S is a specialized wall mount designed to provide precise placement and alignment for ultra short throw and short throw projectors mounted on a single stud. This unit functions as the short throw arm only; to complete the installation, the projector mount must be ordered separately. It is compatible with the RPA, RPA Elite, RPA Mini, and RPA Elite Mini Series projector mounts. For installers requiring high-precision alignment, this series offers industry-first micro height and leveling adjustments. When used with RPA Elite mounts, the system provides micro roll, pitch, and yaw adjustments to ensure perfect image placement. The integrated cable management system is designed to conceal and protect cabling for a clean, professional finish. This mount is UL Listed and includes the necessary hardware for secure installation into wood studs, steel studs, or concrete walls. The WM110S accommodates a 50 lbs (22.7 kg) weight capacity and offers an extension range from the wall of 11.3" to 18" (28.70cm - 45.72cm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 21.7 in (55.1 cm) |
| Extension | 11.3" - 18" (28.70cm - 45.72cm) |
| Height | 14.2 in (36.1 cm) |
| Overall Dimensions | 14.2" x 7.3" x 21.7" (360 x 185 x 551 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 7.3 in (18.5 cm) |
| Adjustability | Fixed |
All other specifications 7
| Adjustments | Pitch: 3°Yaw: 0° |
| Application | Wall |
| Color | Silver |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872122830 |
| Certifications | UL Listed |
Resources
Questions about this part
What else do I need to buy to use the WM110S?
This SKU includes the short throw arm only. You must also order a compatible projector mount, such as the RPA, RPA Elite, RPA Mini, or RPA Elite Mini Series.
Will this mount work with a standard long-throw projector?
Yes, the WM110S also supports wall-mounted long-throw projectors in addition to ultra short throw models.
What kind of wall construction is this mount compatible with?
The WM110S comes with installation hardware designed for wood stud, steel stud, and concrete wall construction.
How do I adjust the image alignment with this mount?
The WM110S offers micro height and leveling adjustments. If used in conjunction with RPA Elite mounts, you can also achieve precision alignment through micro roll, pitch, and yaw.
Which document should I use for submittals and installation?
Installers can refer to the WM130S Installation Manual for setup instructions or the WM1XXS Technical Drawing for detailed dimensions.
