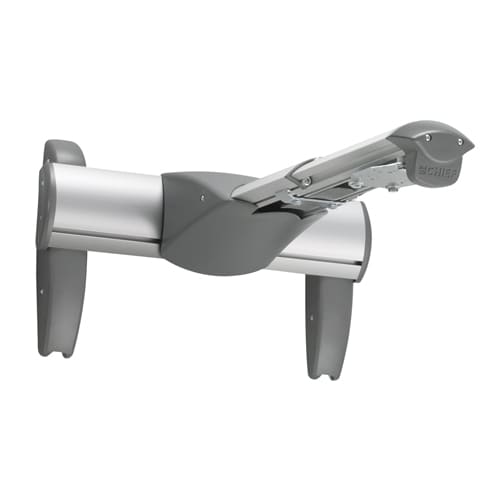

Ultra Short Throw Wall Mount (Dual Stud)
Ultra short throw wall mount for dual stud installations, providing 10" of lateral shift and a 50 lbs capacity
The Chief WM210S is an ultra short throw wall mount designed specifically for dual stud applications. This solution provides precise placement and alignment for short throw projectors, featuring an integrated lateral shift of 10" (254 mm) to assist with image centering. This model is a short throw arm only; to complete the installation, you must order a projector mount separately. It is compatible with Chief RPA, RPA Elite, RPA Mini, and RPA Elite Mini series projector mounts. The WM210S also supports wall-mounted long-throw projectors. This TAA compliant and UL listed mount features an innovative quick-connect system for rapid installation and includes an integrated cable management system to conceal and protect all wiring for a clean, professional finish. For precision alignment, users pairing this with RPA Elite mounts can utilize micro roll, pitch, and yaw adjustments, alongside industry-first micro height and leveling capabilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.1 in (58.7 cm) |
| Extension | 12.8" - 20" (32.51cm - 50.80cm) |
| Height | 11.5 in (29.2 cm) |
| Lateral Shift | 10 in (254 mm) |
| Overall Dimensions | 11.5" x 19.6" x 23.1" (293 x 499 x 586 mm) |
| Shipping Weight | 20 lbs (9.1 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 19.6 in (49.8 cm) |
All other specifications 9
| Adjustability | Fixed |
| Adjustments | Pitch: 3° |
| Application | Wall |
| Color | Silver |
| Projector Size | Small |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872122908 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
What do I need to buy to complete the installation with the WM210S?
The WM210S is the short throw arm only and requires a separate projector mount. It is compatible with the RPA, RPA Elite, RPA Mini, and RPA Elite Mini series mounts.
Can the WM210S be used with long-throw projectors?
Yes, this mount supports both short throw and wall-mounted long-throw projectors.
Does the WM210S allow for image alignment adjustments?
The WM210S includes integrated lateral shift of 10" (254 mm) and a 3° pitch adjustment. When used with RPA Elite mounts, you gain access to micro roll, pitch, and yaw precision alignment.
How much weight can this mount support?
The WM210S has a rated weight capacity of 50 lbs (22.7 kg).
What is the extension range from the wall?
The WM210S provides an extension range of 12.8" to 20" (32.51 cm to 50.8 cm) from the wall surface.
