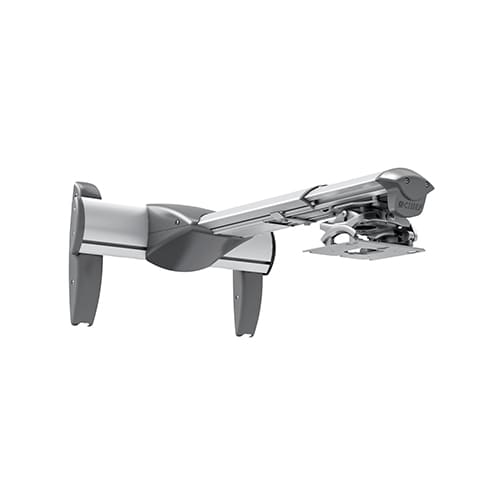

Ultra Short Throw and Universal Projector Mount Kit (Dual Stud)-WM210MAUS
Universal projector mount kit with dual-stud lateral shift, 25 lbs capacity, and 10" alignment range
The Chief WM210MAUS is a specialized mounting solution designed to provide the flexibility required for ultra short throw and universal projector installations. This kit combines the dual-stud short throw extension arm (WM210S) with the Universal RPA Elite projector mount (RPMAUS) to facilitate precise alignment in challenging spaces. The system is rated for a weight capacity of 25 lbs (11.3 kg) and features a lateral shift capability of up to 10" (254 mm), allowing installers to achieve correct image alignment between dual studs. This kit is built for rapid deployment via an innovative quick-connect system and offers industry-first micro height and leveling adjustments. For precision image positioning, the RPA Elite mount provides micro roll, pitch, and yaw adjustments. The integrated cable management system keeps wiring concealed and protected for a professional finish. This UL Listed assembly includes the necessary hardware for mounting to wood studs, steel studs, or concrete walls and can also be used for long-throw projectors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Extension | 12.8" - 20" (32.51cm - 50.80cm) |
| Height | 11.5 in (29.2 cm) |
| Lateral Shift | 10 in (254 mm) |
| Shipping Dimensions | 22.5" x 12" x 13"(571.5 x 304.8 x 330.2 mm) |
| Shipping Weight | 27 lbs (12.3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 19.6 in (49.8 cm) |
| Application | Wall |
All other specifications 8
| Color | Silver |
| Interface Type | Projector |
| Mounting Method | RPMAUS |
| Projector Size | Small |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872170770 |
| Certifications | UL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the WM210MAUS fit my specific projector?
This kit is verified against 7,167 device models from 112 manufacturers. Examples of compatible devices include the Epson BrightLink 450Wi, Optoma 4K400x, and Panasonic PT-AE100U.
What is included in this projector mount kit?
The kit includes the dual-stud short throw extension arm (WM210S) and the Universal RPA Elite projector mount (RPMAUS).
How much weight can this mount support?
The WM210MAUS is rated for a maximum weight capacity of 25 lbs (11.3 kg).
What mounting surfaces can I install this on?
The included hardware supports mounting for wood stud, steel stud, and concrete wall construction.
What is the benefit of the lateral shift on this mount?
The 10" (254 mm) lateral shift allows for precise image alignment when working between dual studs.
