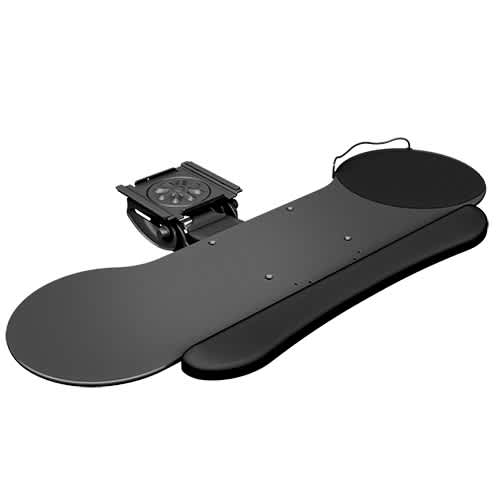

Ultra-Compact Arm, 28" Ultra-Compact Keyboard and Mouse Tray
Ultra-compact keyboard and mouse tray for ergonomic support on height-adjustable desks and furniture, featuring a 5.75" height adjustment range
The Chief KBD-UC-UC is an ultra-compact keyboard and mouse tray designed for high-performance ergonomics in spaces with limited clearance. It is optimized for applications requiring maximum retraction under a desktop and minimal track length, making it an ideal solution for height-adjustable desks with cross-members positioned as little as 12" (305 mm) from the front edge of the work surface. This assembly features a patented secondary slide and a unique arm design to maintain a compact footprint while providing full retraction via an 11" (279 mm) track. The system utilizes a patented "No Knob / Gravity Lock" spring-assisted height adjustment, allowing users to simply lift the tray to the desired position and release it without the need for knobs, levers, or ratchet handles. The phenolic surface tray is paired with a rugged steel arm finished in a durable black powder coat, meeting or exceeding ANSI / BIFMA X5.5 industry standards for durability.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | -4″ (102 mm) below the worksurface5.75″ (146 mm) total height adjustment range: +1.75″ (44 mm) above |
| Shipping Weight | 21 lbs (9.5 kg) |
| Accessory Type | Laptop and Keyboard |
| Adjustability | ExtensionHeight AdjustableMicro-AdjustableSwivelTilt |
| Application | Desk-TabletopFurniture |
| Color | Black and Grey with Black Accents |
| Keyboard Arm Type | Ultra-Compact Arm |
| Keyboard Tray Type | Ultra-Compact Tray |
All other specifications 5
| Material | Phenolic surface |
| TAA Compliant | Yes |
| Tilt | +10° / -20° |
| UPC | 841872172682 |
| Certifications | TAA |
Resources
Questions about this part
Will the KBD-UC-UC fit on my height-adjustable desk?
Yes, it is designed for desks with cross-members located as little as 12" (305 mm) back from the front edge of the work surface.
How do I adjust the height of the keyboard tray?
The system uses a patented spring-assisted "No Knob / Gravity Lock" mechanism; simply lift the tray to your preferred height and release to lock it in place.
What is the total vertical adjustment range of this arm?
The tray offers a 5.75" (146 mm) total height adjustment range, extending 1.75" (44 mm) above or 4" (102 mm) below the worksurface.
Can I tilt the keyboard tray for better ergonomics?
Yes, the tray provides tilt adjustment of +10° to -20° to accommodate the natural typing angle of the user.
Does this keyboard tray require additional hardware for mounting?
All necessary mounting hardware and instructions are included with the KBD-UC-UC for desk and tabletop applications.
