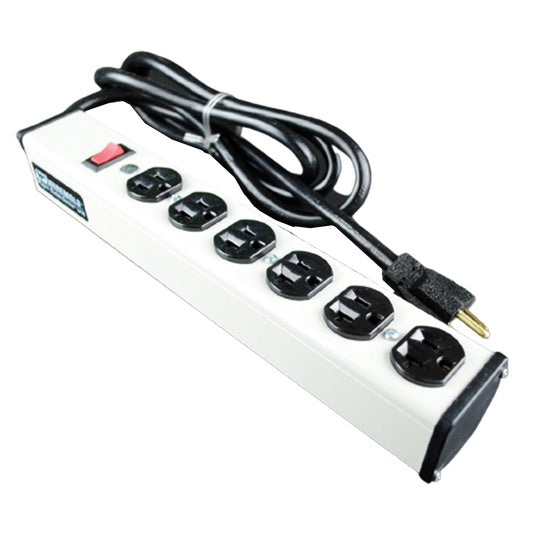

ULB620-6 Plug-In Outlet Center Unit
White aluminum power center with six 20A outlets, a lighted switch, and a 6 ft (1.8 m) cord
The Wiremold ULB620-6 is a plug-in outlet center unit designed to provide power in surface-mounted raceway systems. This unit features a white aluminum housing with six 20A, 120V, 60Hz, 2500 watt outlets spaced with 1 1/2" (38 mm) center-to-center. It includes a lighted switch for easy power control and a 6 ft (1.8 m) 12/3 SJT black cord equipped with a NEMA5-20 plug. The 13 3/4" (337 mm) long unit utilizes a snap-on slide-off mounting design for simplified installation and service. This specific SKU is TAA compliant and is part of a series that also offers a 1.5' version.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cord Length | 6 ft (1.8 m) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | White |
Resources
Questions about this part
How long is the power cord on the ULB620-6?
This unit features a 6 ft (1.8 m) 12/3 SJT black cord that ends in a NEMA5-20 plug.
What is the NEMA plug type for this outlet center?
The ULB620-6 is equipped with a NEMA5-20 plug for compatibility with 20-amp circuits.
How is the ULB620-6 mounted to the raceway?
The unit is installed using a snap-on slide-off mounting method, which allows for quick attachment and easier servicing of the power center.
Is there a different cord length available for this series?
Yes, the ULB620 series includes a variant with a 1.5' cord length in addition to this 6' model.
