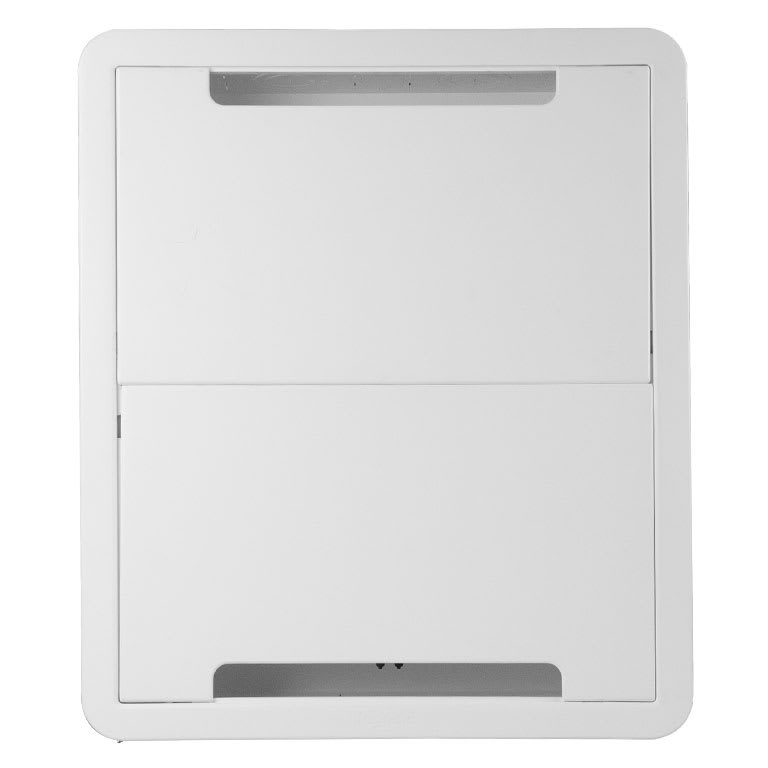

17" TV Media In-Wall Box
In-wall media enclosure for concealing streaming devices and power behind wall-mounted displays
The Sanus SA-IWB17-W1 is a 17-inch TV media in-wall box designed to conceal and organize streaming devices, modules, and network switches directly behind a wall-mounted TV. This white enclosure is constructed from Wi-Fi transparent material to ensure wireless components maintain signal integrity. To facilitate installation in both new construction and retrofit scenarios, the kit includes a box, trim ring, cover, drywall clips, and a cutting template. For larger equipment, such as the Samsung One Connect box, the included mounting plate provides 1.5" of elevation to create a second layer of storage. The split cover is designed to snap into place and remains removable even when the unit is partially obstructed or hidden. Integrated power knockouts allow for the installation of electrical outlets, while cable knockouts assist with cable organization to maintain a clean, professional entertainment space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.97 in (10.1 cm) |
| Height | 18.52 in (47 cm) |
| Package Depth | 4.5 in (11.4 cm) |
| Package Height | 19 in (48.3 cm) |
| Package Width | 16.5 in (41.9 cm) |
| Shipping Dimensions | 19" x 16" x 4.25" (482.6 x 406.4 x 108 mm) |
| Shipping Weight | 4.75 lbs (2.2 kg) |
| Width | 15.87 in (40.3 cm) |
All other specifications 5
| Accessory Type | Cable ManagementComponent Storage |
| Application | In-WallWall |
| Color | White |
| Installation Items | Drywall SawFlathead ScrewdriverLevelPencilPhillips Head ScrewdriverStud FinderTape Measure |
| UPC | 793795536228 |
Resources
Questions about this part
Will the SA-IWB17-W1 fit the Samsung One Connect box?
Yes, the included mounting plate provides 1.5" of elevation to accommodate larger devices like the Samsung One Connect box.
Can I use this for a retrofit installation in existing drywall?
Yes, the system includes drywall clips and a trim ring to accommodate both retrofit and new construction applications.
Will wireless signals be blocked by the enclosure?
No, the box is made of Wi-Fi transparent material specifically to manage wireless components like streaming sticks.
What tools are required for the installation of the SA-IWB17-W1?
To install this unit, you will need a drywall saw, a level, a stud finder, a tape measure, a pencil, a flathead screwdriver, and a Phillips head screwdriver.
Does the enclosure allow for integrated power installation?
Yes, it features built-in power knockouts that allow you to install power for the TV and other mounted devices.
