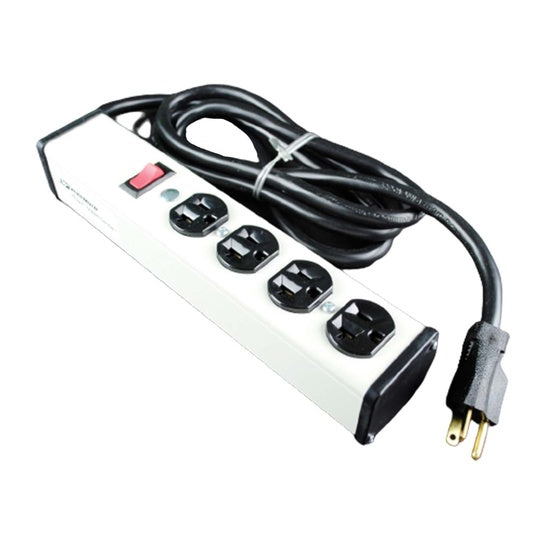

ULB420-6 Plug-In Outlet Center Unit
Plug-in power center with four 20A outlets, a lighted switch, and a 6 ft (1.8 m) cord
The ULB420-6 is a plug-in outlet center unit designed for efficient power distribution within professional AV installations. This unit features a white aluminum housing and provides four 20A, 120V, 60Hz, 2500 watt outlets to support high-draw equipment. It includes a lighted switch for easy power monitoring and is equipped with a 6 ft (1.8 m) 12/3 SJT black cord that terminates in a NEMA5-20 plug. The unit has a total length of 10 3/4" (273 mm) with a 1 1/2" (38 mm) center-to-center distance between receptacles. Installation is simplified via a snap-on slide-off mounting design. This SKU is the 6 ft version of the ULB420 series; the 1.5 ft version is also available for shorter reach requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cord Length | 6 ft (1.8 m) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | White |
Resources
Questions about this part
What is the power capacity of the ULB420-6?
The unit provides four 20A, 120V, 60Hz outlets with a total capacity of 2500 watts per outlet.
How is the ULB420-6 mounted?
The unit uses a snap-on slide-off mounting system for quick and efficient installation.
What type of plug is used on the power cord?
The 6 ft (1.8 m) 12/3 SJT black cord is fitted with a NEMA5-20 plug.
Is the ULB420-6 TAA compliant?
Yes, this product is TAA compliant, making it suitable for specific government contract requirements.
What is the difference between the ULB420-6 and the other ULB420 models?
The ULB420-6 features a 6 ft (1.8 m) cord length, whereas the other variant in this series is available in a 1.5 ft length.
