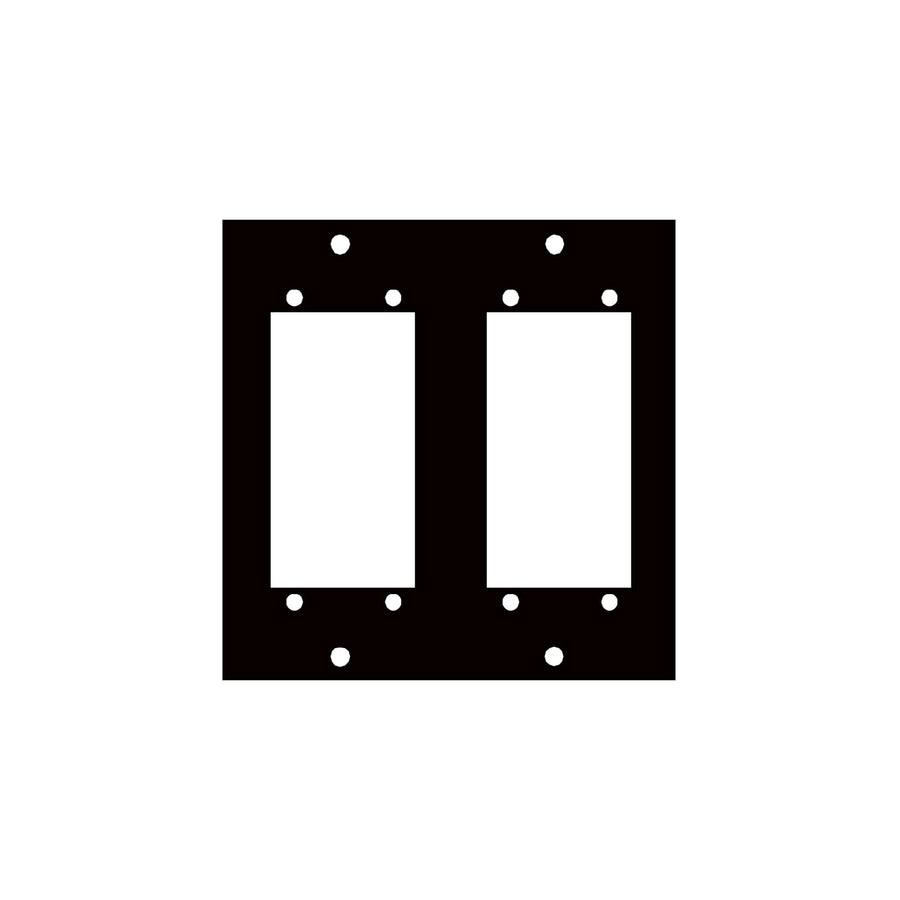

UCP Module with Two EDAC/ELCO 90 Pin Punchouts
UCP Module featuring two 90-pin EDAC/ELCO punchouts for use in Middle Atlantic UCP Series mounting systems
The 2ELCO90 is a UCP Module designed for professional integration within the Middle Atlantic UCP Series. This module features two EDAC/ELCO 90-pin punchouts, providing a structured way to manage high-density connectivity. It is constructed from aluminum with a black brushed and anodized finish to match professional rack environments. This specific module is designed to fit into several Middle Atlantic mounting options, including the FK2, FK4, UCP-CH, UCP-CT, and UCP-SF series. When installed in a UCP-CH Chassis, it allows for up to 10 modules within the frame. This component is TAA compliant, meeting requirements for specific government and commercial procurement standards.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| UCP Module Capacity | 2 |
| UPC | 656747000492 |
You'll need these with it
Questions about this part
Which Middle Atlantic series is this module compatible with?
The 2ELCO90 fits into the FK2, FK4, UCP-CH, UCP-CT, and UCP-SF series frames or cable trays.
How many 90-pin punchouts does this module have?
This module provides two EDAC/ELCO 90-pin punchouts for your connectivity needs.
What is the maximum capacity of the UCP-CH chassis?
A single UCP-CH Series Chassis can hold up to 10 UCP Modules.
Is this product TAA compliant?
Yes, the 2ELCO90 is TAA compliant for procurement requirements.
What materials are used for the finish of this module?
This module is made of aluminum and features a black brushed and anodized finish.
