UCP Module with Two EDAC/ELCO 56 Pin Punchout

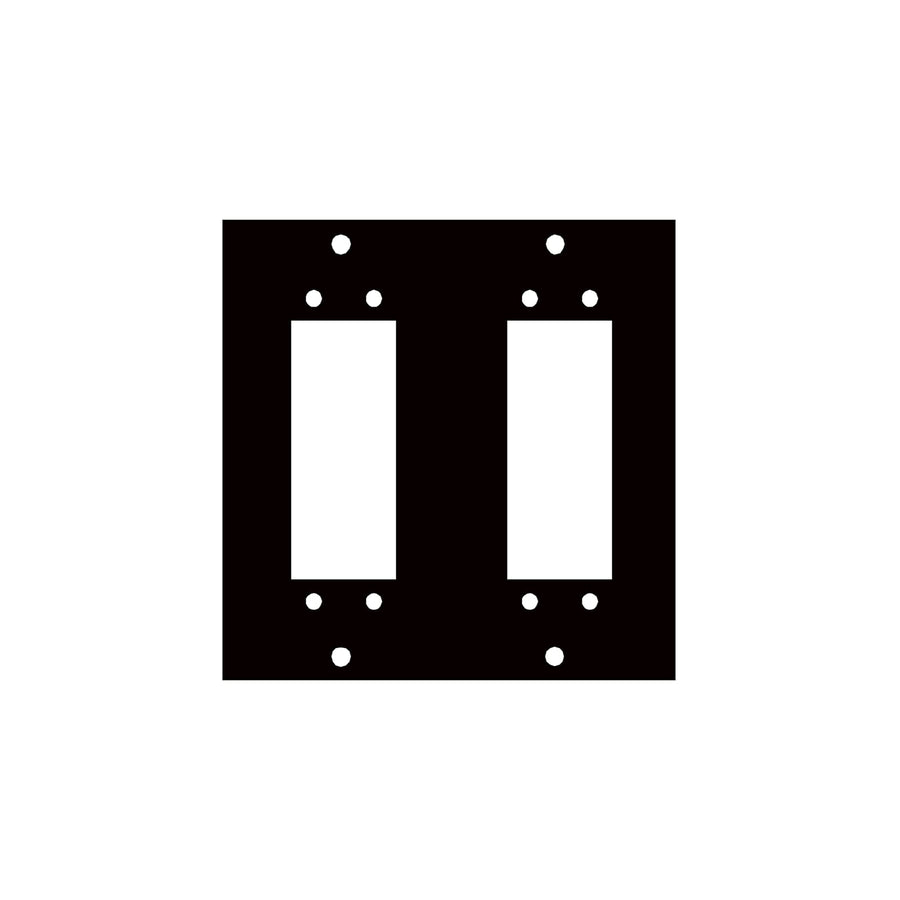

Modular UCP panel insert featuring two 56-pin EDAC/ELCO punchouts for use in Middle Atlantic UCP series frames
The Middle Atlantic 2ELCO56 is a modular UCP series insert designed to provide two EDAC/ELCO 56-pin punchout locations within a single module. This TAA compliant component is constructed from aluminum with a black brushed and anodized finish. It is specifically engineered to integrate into several Middle Atlantic UCP series mounting systems, including the FK2, FK4, UCP-CH, UCP-CT, and UCP-SF. This module is compatible with various connector types, fitting 38, 56, 90, and 120 pin Elco/Edac connectors. When using a UCP Series Chassis (UCP-CH), this module serves as one of the ten possible modules that can be installed in the unit.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| UCP Module Capacity | 2 |
| UPC | 656747000485 |
You'll need these with it
Questions about this part
What series of frames is this module compatible with?
The 2ELCO56 is designed for use in the FK2, FK4, UCP-CH, UCP-CT, or UCP-SF Base Series.
Which connector types can I use with this punchout?
This module fits 38, 56, 90, and 120 pin Elco/Edac connectors.
How many of these modules fit in a UCP Series Chassis?
A UCP Series Chassis (UCP-CH) can hold up to 10 UCP Modules.
Is this product TAA compliant?
Yes, the 2ELCO56 is TAA compliant.
What is the physical size of the module?
The module measures 3.39 in (8.6 cm) in width, 3.49 in (8.9 cm) in height, and 0.13 in (0.3 cm) in depth.
