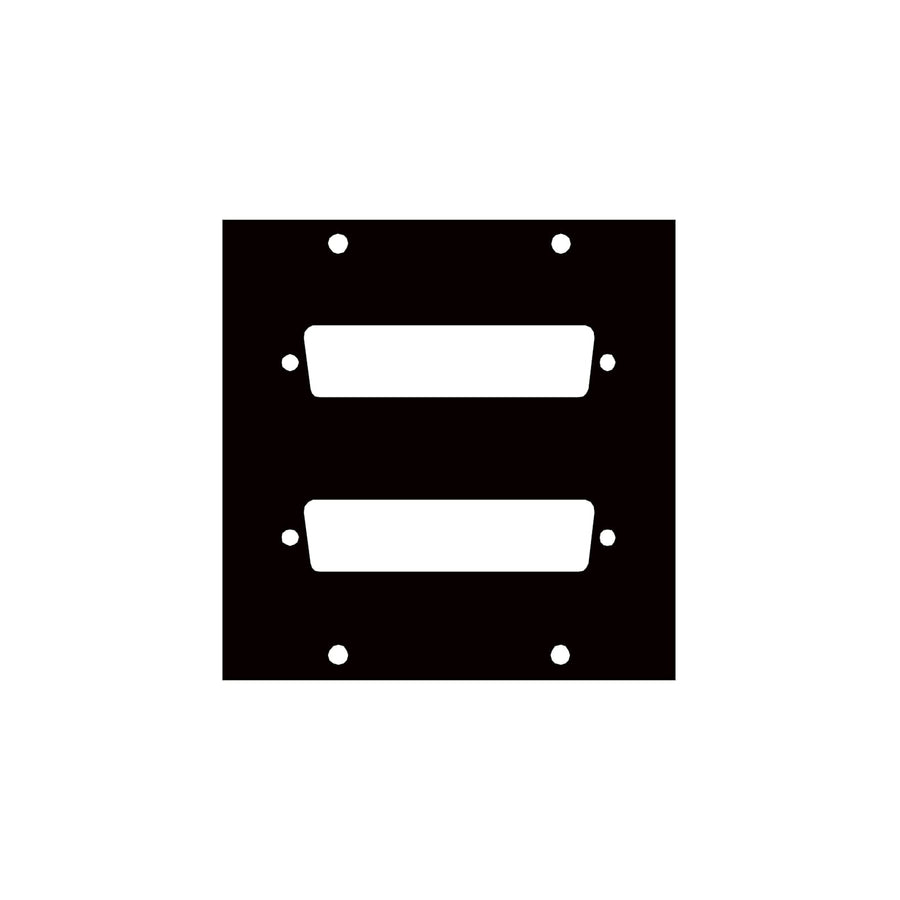

UCP Module with Two DB50 Punchouts
UCP Module with two DB50 punchouts for use in Middle Atlantic UCP series frame kits, chassis, or cable trays
The Middle Atlantic 2DB50 is a modular component designed for the UCP Series, providing two DB50 punchouts within a compact footprint. This aluminum module is finished with a black brushed and anodized surface. It is engineered to fit into several Middle Atlantic mounting solutions, including the FK2, FK4, UCP-CH, UCP-CT, and UCP-SF base series. When used within a UCP Series Chassis (UCP-CH), an installer can accommodate up to 10 UCP modules in a single unit. This specific module is TAA compliant, making it suitable for projects with specific procurement requirements. The 2DB50 is intended for integration into swinging frame kits, chassis, or cable trays to facilitate organized connectivity within professional AV racks.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| UCP Module Capacity | 2 |
| UPC | 656747000430 |
You'll need these with it
Questions about this part
Which Middle Atlantic series is this module compatible with?
The 2DB50 fits into the FK2, FK4, UCP-CH, UCP-CT, and UCP-SF series frames, chassis, and cable trays.
How many of these modules can I fit in a UCP Series Chassis?
A single UCP Series Chassis (UCP-CH) is designed to hold 10 UCP modules.
What is the physical size of the 2DB50 module?
This module measures 3.39" W x 3.49" H with a depth of 0.13".
Is this product TAA compliant?
Yes, the 2DB50 is TAA compliant.
What is the finish on the aluminum construction?
The module features a black brushed and anodized finish.
