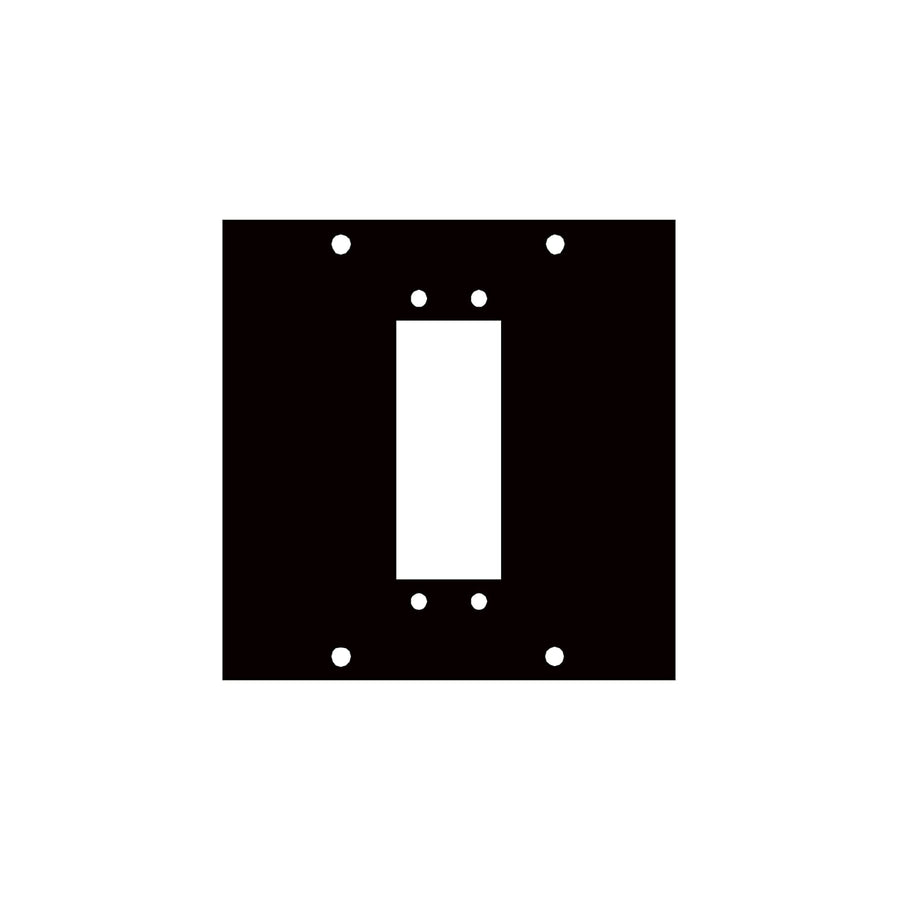

UCP Module with EDAC/ELCO 56 Pin Punchout
UCP Module designed for 56-pin EDAC/ELCO connectors within UCP Series modular frames
The 1ELCO56 is a single-capacity UCP module designed to house EDAC or ELCO 56-pin punchout connectors. Constructed from aluminum with a black brushed and anodized finish, this module is built for professional integration within the Middle Atlantic UCP Series. It is intended for use within UCP Series chassis (UCP-CH), UCP Series hinged frame kits (UCP-SF), UCP Series cable trays (UCP-CT), or standard frame kits such as the FK2 and FK4 series. This TAA compliant component provides a modular approach to managing high-density connections in rack-mounted environments. Note that this product is scheduled for discontinuation on October 1, 2026, and users may look to Wiremold communication accessories as suggested alternatives for future designs.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| UCP Module Capacity | 1 |
| UPC | 656747000249 |
You'll need these with it
Questions about this part
What type of connectors does the 1ELCO56 support?
This module is designed specifically for 56-pin EDAC or ELCO punchout connectors.
Which Middle Atlantic series is this module compatible with?
The 1ELCO56 fits into UCP Series chassis (UCP-CH), UCP Series Hinged Frame Kits (UCP-SF), UCP Series Cable Trays (UCP-CT), and FK2 or FK4 Series Frame Kits.
Is this module TAA compliant?
Yes, the 1ELCO56 is TAA compliant for use in projects requiring adherence to the Trade Agreements Act.
What is the lifecycle status for this part?
This product is currently active but is scheduled to be discontinued on October 1, 2026.
