UCP Module with EDAC/ELCO 120 Pin Punchout
Connector module for EDAC/ELCO 38, 56, 90, and 120 pin punchout connectors within UCP Series systems

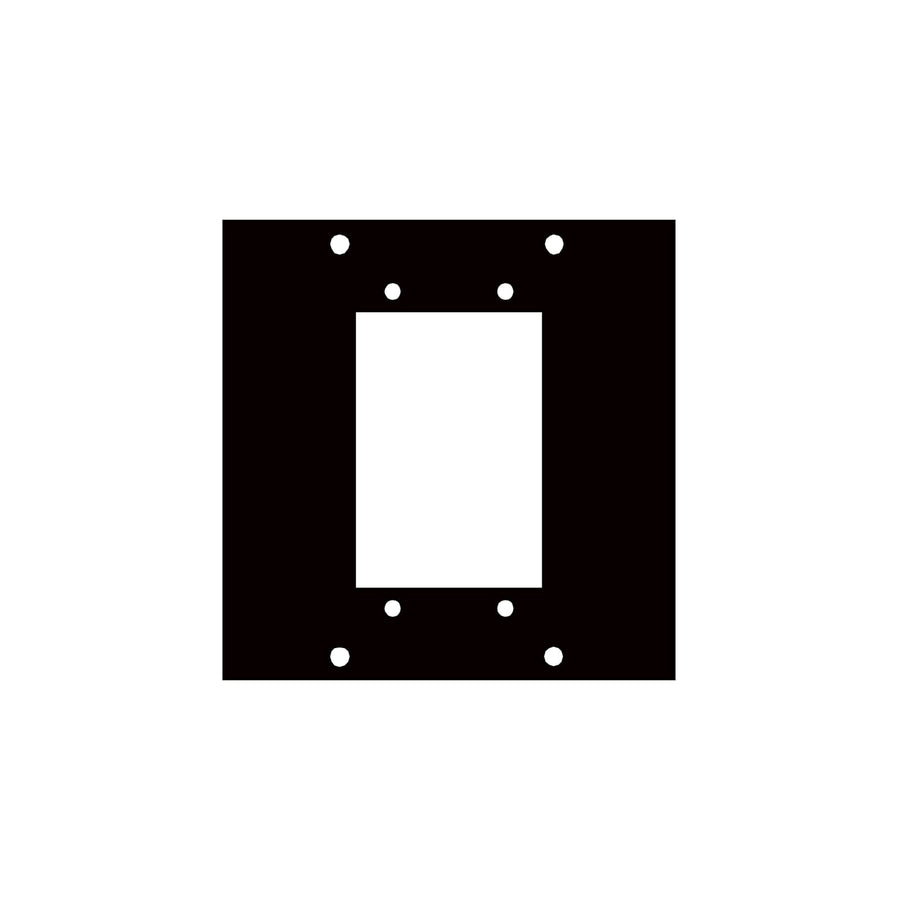

The 1ELCO120 is a single-capacity UCP module designed to accommodate EDAC/ELCO 120 pin punchout connectors. This component is built from aluminum with a black brushed and anodized finish. To use this module, it must be installed into a UCP Series base system, such as a UCP-CH chassis, a UCP-SF hinged frame kit, a UCP-CT cable tray, or the FK2 or FK4 frame kits. It is specifically engineered to provide a secure mounting point for high-density 38, 56, 90, and 120 pin Elco/Edac connectors. This module is TAA compliant and is part of the Middle Atlantic UCP modular panel series, which provides a flexible architecture for custom connector configurations in professional AV installations.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 3.49 in (8.9 cm) |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Width | 3.39 in (8.6 cm) |
| Base Series | FK2, FK4, UCP-CH, UCP-CT, or UCP-SF |
| Finish | Brushed and Anodized |
| UCP Module Capacity | 1 |
| UPC | 656747000225 |
You'll need these with it
Questions about this part
Which pin configurations does the 1ELCO120 support?
This module supports EDAC/ELCO 38, 56, 90, and 120 pin punchout connectors.
What UCP series hardware is required to use this module?
You can install this module into UCP Series chassis (UCP-CH), hinged frame kits (UCP-SF), cable trays (UCP-CT), or FK2 and FK4 frame kits.
What is the capacity of a single 1ELCO120 module?
Each 1ELCO120 module provides capacity for 1 connector.
Is this product TAA compliant?
Yes, the 1ELCO120 is TAA compliant.
What is the finish of this module?
The module features a black brushed and anodized aluminum finish.
