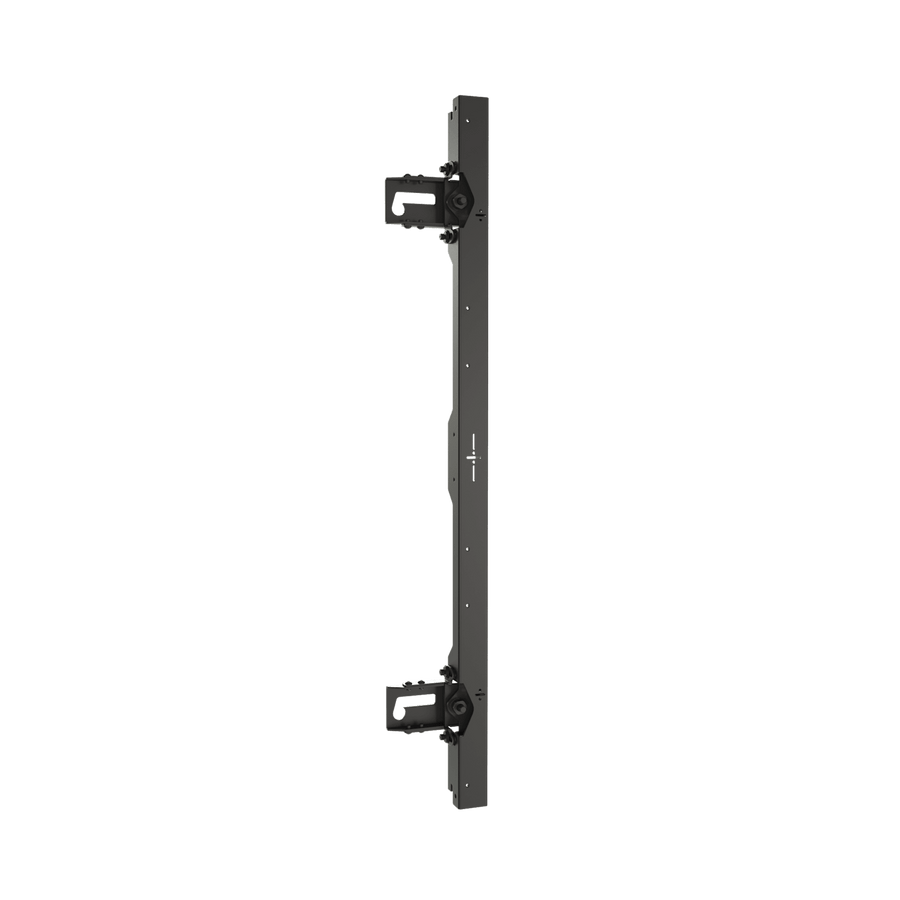

TiLED™ Right dvLED Wall Mount for Nanolumens Engage, 3 Displays Tall

Right wall mount component for Nanolumens Engage series, supporting 3 displays tall in landscape orientation

The TILD1X3NE1-R is a right-side wall mounting component specifically engineered for the Nanolumens Engage Series. As part of a modular TiLED™ system, this SKU provides the structural end-point for a 3-display tall configuration. This modular approach allows installers to mix and match left, middle, and right structural components to build custom video wall heights, including 4 or 5 display tall options. This specific part is designed for landscape orientation and is TAA compliant. Precision alignment is achieved through integrated micro-adjustments across three axes: X-axis lateral shift for side-to-side positioning, Y-axis vertical shift for cabinet-to-cabinet alignment, and a 0.75” (19 mm) Z-axis plumb adjustment to compensate for wall imperfections. This ensure a perfectly flat mounting surface for the LED cabinets. The mounting slots are offset to facilitate easier installation and to protect the sides of the LED modules from friction damage. When installed, the equipment depth range is between 3.95"–4.70" (101–120 mm). Please note that the wall mounting structure, vertical connectors, and side covers are sold separately.
