TiLED™ Right dvLED Wall Mount for LG LSBB Series Fine Pitch Essentials, 5 Displays Tall
Wall mount for 5 LG LSBB Series Fine-Pitch Essentials displays in landscape orientation

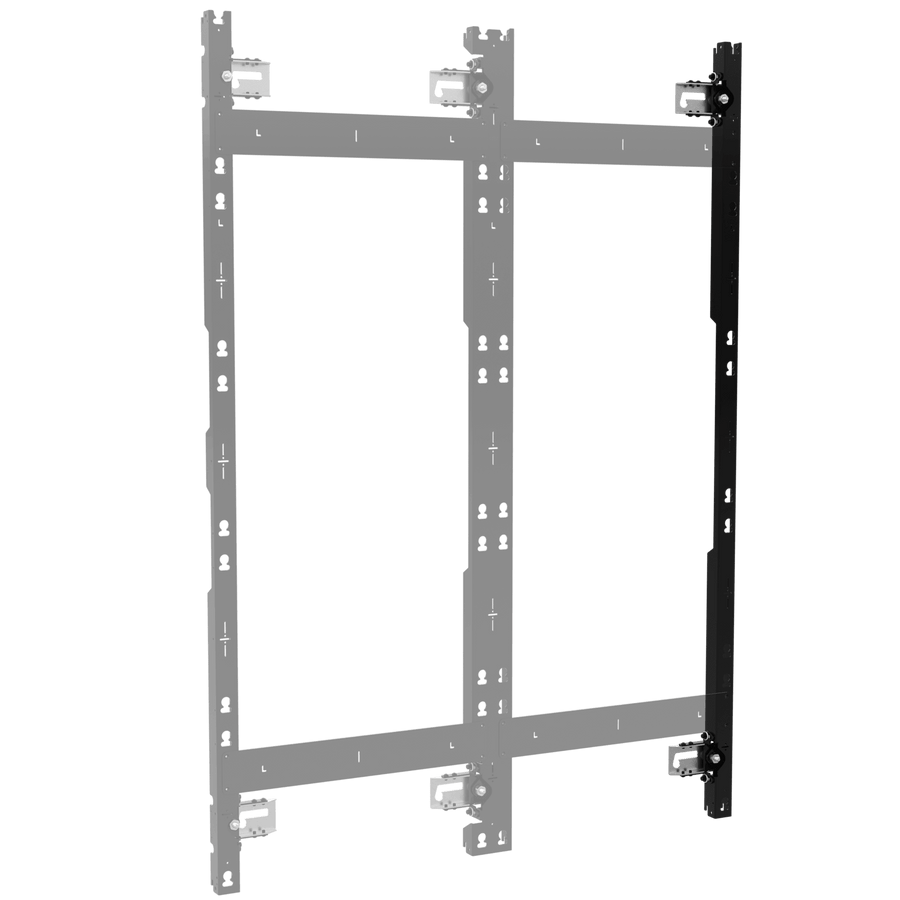

The Chief TILD1X5LG3-R is a specialized TiLED™ dvLED mounting solution engineered specifically for the LG LSBB Series Fine-Pitch Essentials. This configuration is designed to support a 5-display high vertical stack in a landscape orientation. As part of a modular system, this unit utilizes structural components to facilitate flawless video wall alignment through precise X, Y, and Z-axis adjustments. These micro-adjustable capabilities allow installers to compensate for wall imperfections with a 0.75” (19 mm) plumb adjustment and manage cabinet-to-cabinet alignment via vertical shift. The design includes offset mounting slots to facilitate easier installation while protecting the sides of the LED modules from friction. This specific SKU is intended for use with LG LSBB009, LSBB012, LSBB015, and LSBB018 models. Note that wall mounting structures, vertical connectors, and side covers are sold separately and are required to complete the assembly.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 75.5" x 8.75" x 3.5" (191.8 x 22.2 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | LG LSBB Series Fine Pitch Essentials |
All other specifications 6
| Manufacturer | LG |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177861 |
