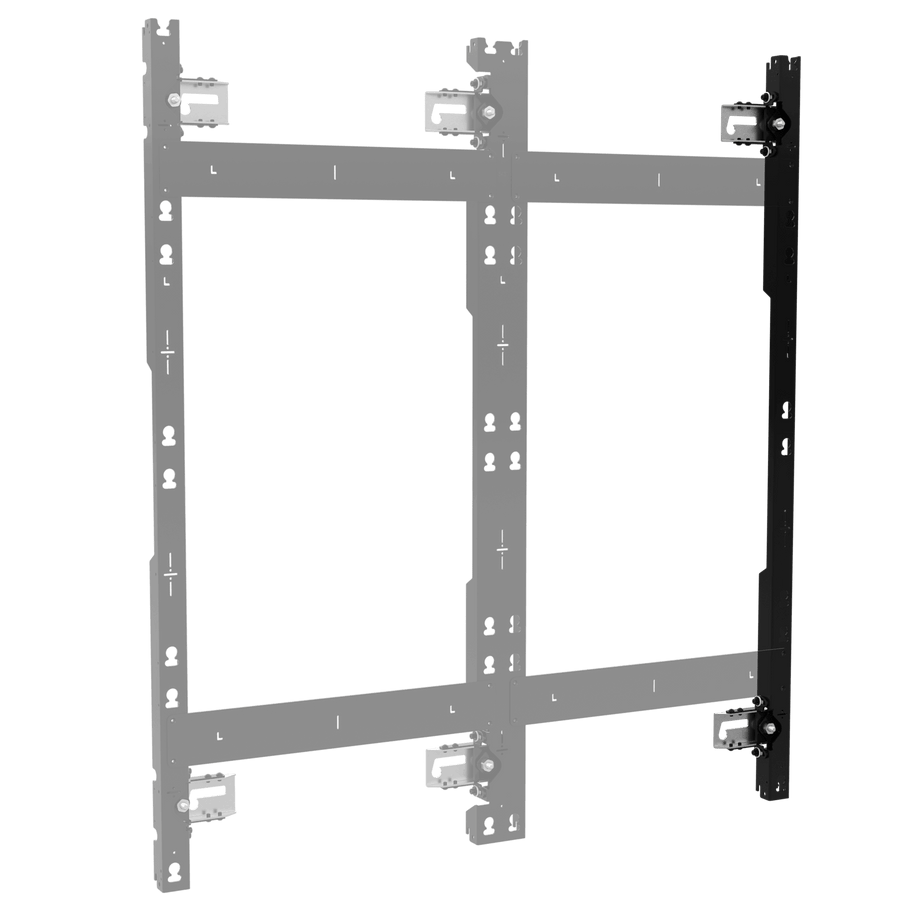

TiLED™ Right dvLED Wall Mount for LG LSBB Series Fine Pitch Essentials, 4 Displays Tall
Wall mount system for 4 LG LSBB Series Fine-Pitch Essentials displays, featuring multi-axis micro-adjustability
The Chief TILD1X4LG3-R is a specialized TiLED™ dvLED wall mounting solution engineered specifically for LG LSBB Series Fine-Pitch Essentials displays. This particular SKU is designed to support a 4-display high configuration in a landscape orientation. To create a complete video wall, installers can mix and match various modular components, including left, middle, and right structural components, which are also available in 3-high and 5-high configurations. This system facilitates precise cabinet-to-cabinet alignment through integrated Y-axis vertical shift adjustments and X-axis lateral shift adjustments. To compensate for wall imperfections and ensure a perfectly flat mounting surface, the system provides 0.75” (19 mm) of Z-axis plumb adjustment. The equipment depth range for these displays is 3.29” – 4.04” (84mm-103mm). This TAA compliant mounting system is built to support the precise alignment requirements of high-resolution LED video walls.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 62.5" x 8.75" x 3.5" (158.8 x 22.2 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | LG LSBB Series Fine Pitch Essentials |
All other specifications 7
| Manufacturer | LG |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872177830 |
| Certifications | TAA |
Verified fitment
Questions about this part
Which LG displays are compatible with the TILD1X4LG3-R?
This mount is verified for use with the LG LSBB Series, including specific models LSBB009, LSBB012, LSBB015, and LSBB018.
How do I align the LED cabinets during installation?
The system features X-axis lateral shift for side-to-side positioning, Y-axis vertical shift for cabinet-to-cabinet alignment, and 0.75” (19 mm) of Z-axis plumb adjustment to correct for wall unevenness.
What else do I need to buy to complete the video wall?
The wall mounting structure, vertical connectors, and side covers are sold separately from this mounting assembly.
What is the weight capacity for this mounting system?
The system is rated to support a weight capacity of 20 lbs (9.1 kg) per individual display.
Does this mount support portrait orientation?
No, the TILD1X4LG3-R is specified for landscape orientation.
