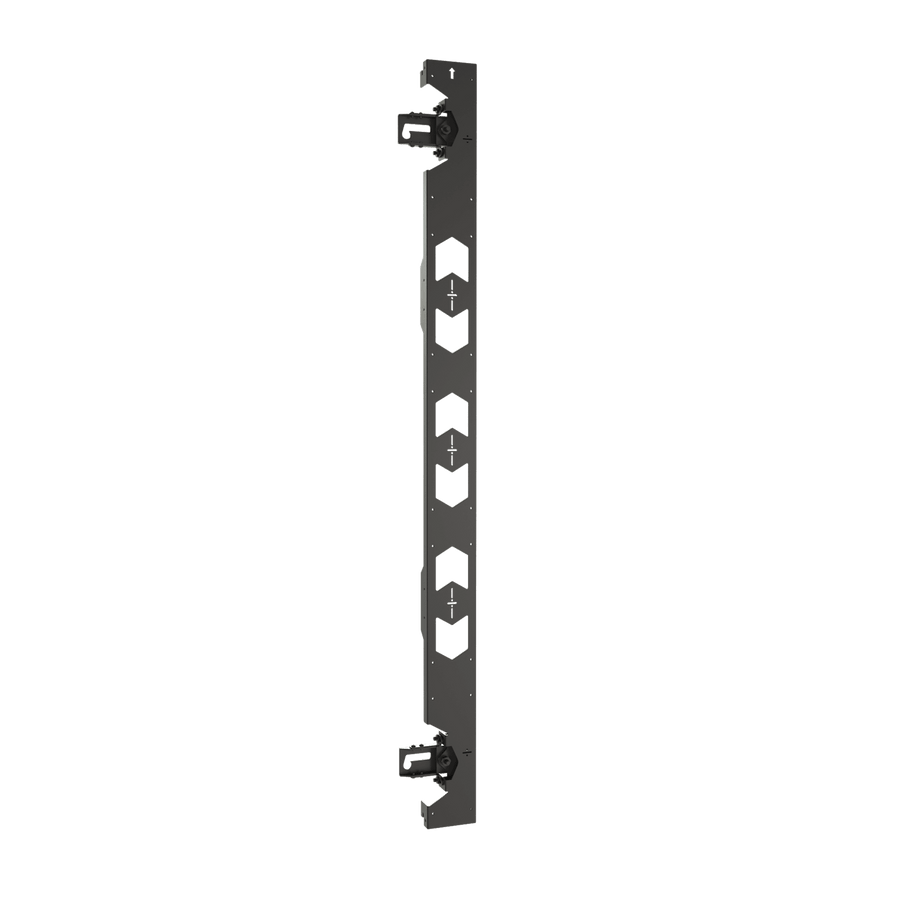

TiLED™ Middle dvLED Wall Mount for Nanolumens Engage, 5 Displays Tall
Middle component for Nanolumens Engage Series video walls, supporting configurations 5 displays tall in landscape orientation
The Chief TILD1X5NE1-M is a middle structural component designed specifically for the Nanolumens Engage Series. This modular mounting system allows installers to create custom video wall configurations by mixing and matching left, middle, and right components. This specific SKU is designed to support configurations that are 5 displays tall in a landscape orientation. To complete the assembly, installers must separately purchase the wall mounting structure, vertical connectors, and side covers. Achieving a flawless LED video wall is supported by integrated micro-adjustments across three axes. The X-axis lateral shift adjustments allow for precise LED positioning, while Y-axis vertical shift adjustments ensure perfect cabinet-to-cabinet alignment. To compensate for wall imperfections and ensure a perfectly flat mounting surface, the system includes 0.75" (19 mm) of Z-axis plumb adjustment. The equipment depth range for the assembled display is between 3.95"–4.70" (101–120 mm). Additionally, the mounting slots are offset to protect the sides of the LED cabinets from damaging friction during the installation process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.95-4.70" (101-120 mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 75.5" x 8.75" x 3.5" (191.8 x 22.2 x 8.9 cm) |
| Shipping Weight | 19.07 lbs (8.7 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 8
| Base Series | Nanolumens Engage Series |
| LED Display Model | Nanolumens Engage |
| Manufacturer | Nanolumens |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallModularMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872177700 |
Resources
Verified fitment
Questions about this part
Will the TILD1X5NE1-M work with my Nanolumens displays?
This middle component is verified for use with the Nanolumens Engage Series, including the Engage 0.9, 1.2, 1.5, and 1.8 models.
What else do I need to buy to complete the video wall assembly?
This SKU is a middle component only. You must also purchase the wall mounting structure, vertical connectors, and side covers separately to complete the system.
How does this component handle uneven walls?
The system features 0.75" (19 mm) of Z-axis plumb adjustment to help you achieve a perfectly flat mounting surface even if the wall is not plumb.
Does this mount include everything needed for installation?
This is a component of a larger modular system. You will need to source the specific left and right structural components required to complete your desired wall height.
Is the TILD1X5NE1-M TAA compliant?
Yes, this product is TAA compliant.
