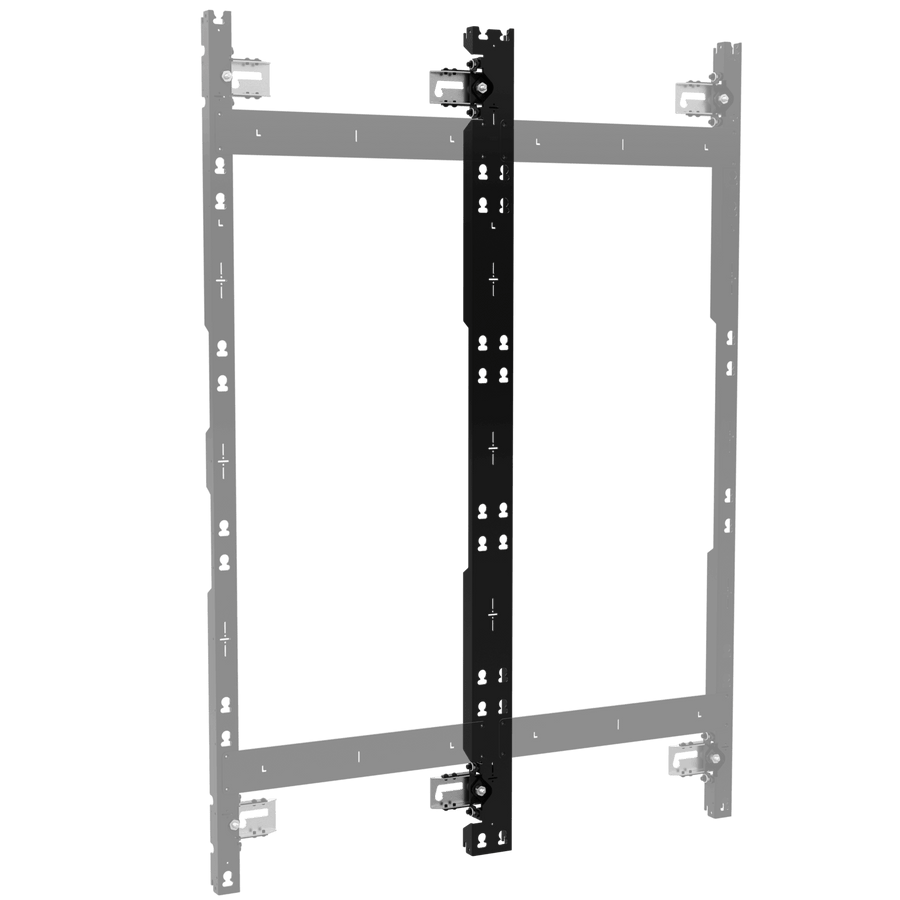

TiLED™ Middle dvLED Wall Mount for LG LSBB Series Fine Pitch Essentials, 5 Displays Tall
Middle mounting component for LG LSBB Series Fine-Pitch Essentials, supporting a 5-display high vertical video wall in landscape orientation
The Chief TILD1X5LG3-M is a middle structural component designed for the TiLED™ modular mounting system, specifically engineered to support the LG LSBB Series Fine-Pitch Essentials. This specific SKU is intended for video wall configurations that are 5 displays high, utilizing a landscape orientation. As part of a modular system, this middle section works in conjunction with left and right mounting components to create a cohesive, continuous structure. To achieve a flawless LED video wall, this mount provides essential precision through three-axis adjustments. The X-axis lateral shift allows for exact horizontal positioning, while Y-axis vertical shift adjustments ensure perfect cabinet-to-cabinet alignment. Additionally, Z-axis plumb adjustments offer 0.75” (19 mm) of movement to compensate for wall imperfections and ensure a perfectly flat mounting surface. This mounting solution is designed to handle a weight capacity of 20 lbs (9.1 kg) per display, with an equipment depth range between 3.29” and 4.04” (84mm–103mm).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 75.5" x 8.75" x 3.5" (191.8 x 22.2 x 8.9 cm) |
| Shipping Weight | 20.04 lbs (9.1 kg) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 7
| LED Display Model | LG LSBB Series Fine Pitch Essentials |
| Manufacturer | LG |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177854 |
Verified fitment
Questions about this part
Will the TILD1X5LG3-M fit my LG LSBB display?
Yes, this mount is verified for the LG LSBB Series Fine-Pitch Essentials, including models LSBB009, LSBB012, LSBB015, and LSBB018.
How many displays can I stack with this specific SKU?
This TILD1X5LG3-M SKU is a middle component designed for a configuration that is 5 displays high.
What adjustments are available for fine-tuning the LED wall alignment?
The system features X-axis lateral shift for positioning, Y-axis vertical shift for cabinet alignment, and Z-axis plumb adjustment for surface flatness.
What else do I need to purchase to complete the installation?
This is a middle component; you will also need to order the specific left and right wall mounting components to complete your modular structure.
What is the weight limit for each individual display?
Each display in the video wall can have a weight capacity of 20 lbs (9.1 kg).
