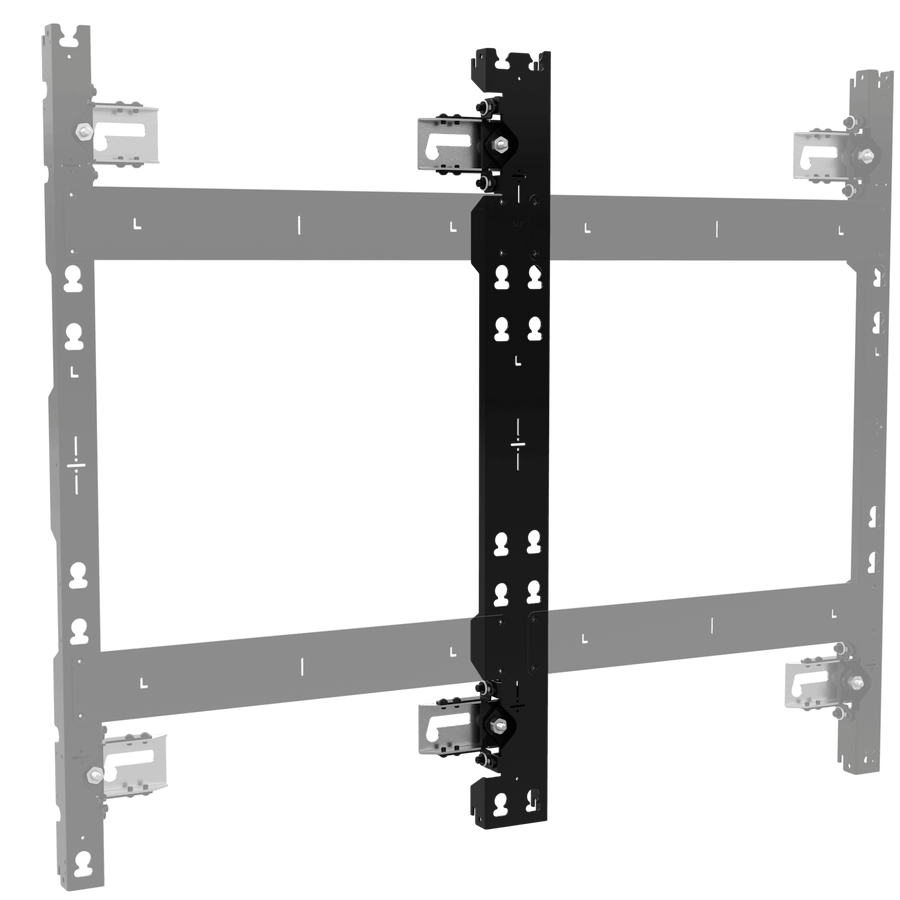

TiLED™ Middle dvLED Wall Mount for LG LSBB Series Fine Pitch Essentials, 3 Displays Tall
Middle dvLED wall mount for 3 displays tall, designed for LG LSBB Series Fine-Pitch Essentials
The Chief TILD1X3LG3-M is a middle structural component for the TiLED™ modular wall mount system, specifically engineered to support the LG LSBB Series Fine-Pitch Essentials. This middle section is designed for a 3-display tall configuration in landscape orientation. To complete a full installation, installers must also select the appropriate left and right structural components, as well as wall mounting structures, vertical connectors, and side covers, which are sold separately. This modular design allows for highly customized video wall layouts. To ensure a flawless visual surface, the mount provides essential X, Y, and Z-axis adjustments. Lateral shift (X-axis) facilitates precise LED positioning, vertical shift (Y-axis) enables perfect cabinet-to-cabinet alignment, and plumb adjustment (Z-axis) of 0.75” (19 mm) compensates for wall imperfections. The mount supports a weight capacity of 20 lbs (9.1 kg) per display and accommodates an equipment depth range of 3.29” to 4.04” (84mm-103mm). Offset mounting slots are integrated to simplify the installation process and protect the sides of the LED cabinets from friction damage.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 49" x 8.5" x 3.5" (124.5 x 21.6 x 8.9 cm) |
| Shipping Weight | 14.38 lbs (6.5 kg) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 7
| LED Display Model | LG LSBB Series Fine Pitch Essentials |
| Manufacturer | LG |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177793 |
Verified fitment
Questions about this part
Is the Chief TILD1X3LG3-M compatible with LG LSBB series displays?
Yes, this middle mount is specifically designed for LG LSBB Series Fine-Pitch Essentials, including models LSBB009, LSBB012, LSBB015, and LSBB018.
What else is required to complete the installation of this mount?
This is a middle component only. You will need to order the corresponding left and right structural components, the wall mounting structure, vertical connectors, and side covers separately.
How much adjustment is available for aligning the LED cabinets?
The system features X-axis lateral shift for positioning, Y-axis vertical shift for cabinet alignment, and a 0.75” (19 mm) Z-axis plumb adjustment to correct for wall unevenness.
What is the weight capacity per display for this mount?
Each display supported by this mount has a weight capacity of 20 lbs (9.1 kg).
How do I handle the installation depth for my equipment?
This mount accommodates an equipment depth range of 3.29” to 4.04” (84mm-103mm) for your LED video wall.
