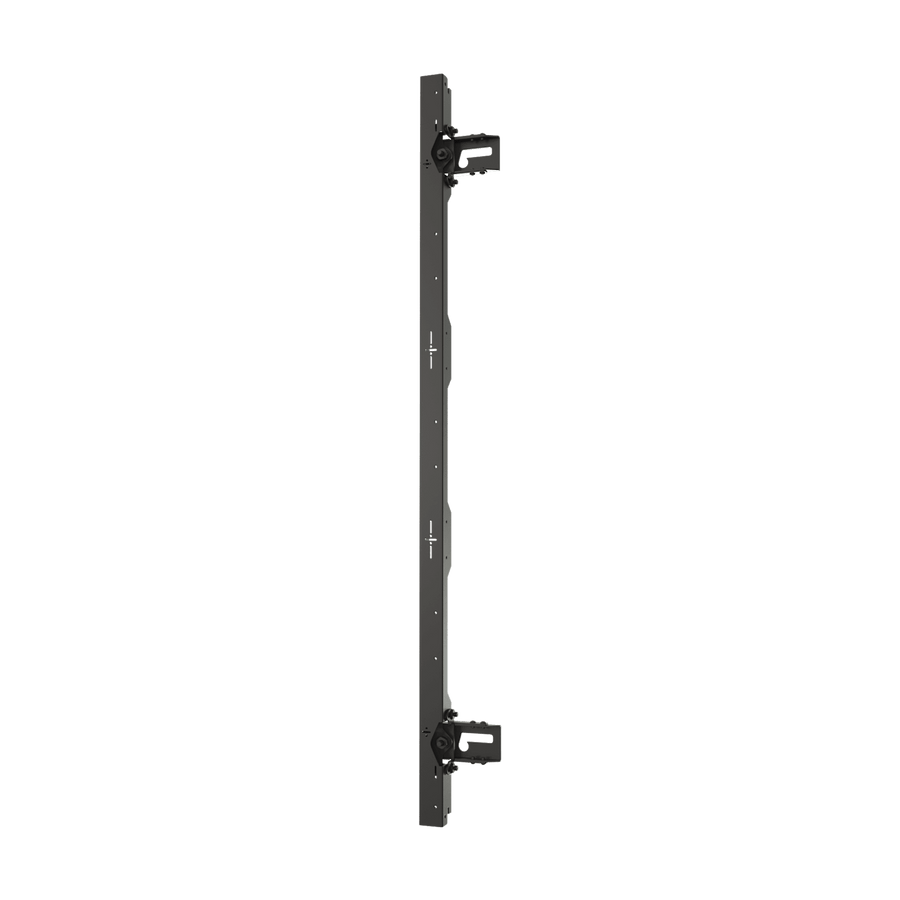

TiLED™ Left dvLED Wall Mount for Nanolumens Engage, 4 Displays Tall
Left-side wall mount for Nanolumens Engage series, supporting 4-display high configurations
The Chief TILD1X4NE1-L is a specialized left-side structural component designed for the Nanolumens Engage series direct view LED video walls. This specific SKU is part of a modular mounting system that allows integrators to create custom configurations by combining left, middle, and right wall mounting components. This particular model is engineered to support configurations that are 4 displays high. To complete a full installation, the wall mounting structure, vertical connectors, and side covers must be purchased separately. This TAA compliant solution utilizes offset mounting slots to simplify the installation process while protecting the sides of the LED cabinets from friction. The system provides critical X, Y, and Z-axis adjustments to ensure precise alignment. These include lateral shift for X-axis positioning, vertical shift for Y-axis cabinet-to-cabinet alignment, and a 0.75” (19 mm) plumb adjustment to compensate for wall imperfections.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.95-4.70" (101-120 mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 62.5" x 8.75" x 3.5" (158.8 x 22.2 x 8.9 cm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 8
| Base Series | Nanolumens Engage Series |
| LED Display Model | Nanolumens Engage |
| Manufacturer | Nanolumens |
| Number of Displays | 4 |
| Orientation | Landscape |
| Special Features | LED Video WallModularMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872177663 |
Resources
Verified fitment
Questions about this part
Will this mount work with my Nanolumens Engage displays?
Yes, this mount is verified for Nanolumens Engage series, including Engage 0.9, 1.2, 1.5, and 1.8 models.
What else do I need to buy to complete the Nanolumens Engage wall?
The TILD1X4NE1-L is a left-side component. You will also need to order the wall mounting structure, vertical connectors, and side covers separately.
How does this mount handle uneven walls?
The system features 0.75” (19 mm) of Z-axis plumb adjustment to compensate for wall imperfections and ensure a flat mounting surface.
What are the depth requirements for the LED cabinets?
The equipment depth range for this mounting solution is 3.95" to 4.70" (101–120 mm) when installed with the display.
Which installation manual should I use for submittals?
The TILD1X3NE1, TILD1X4NE1, and TILD1X5NE1 Installation Manual provides the necessary procedures for this series.
