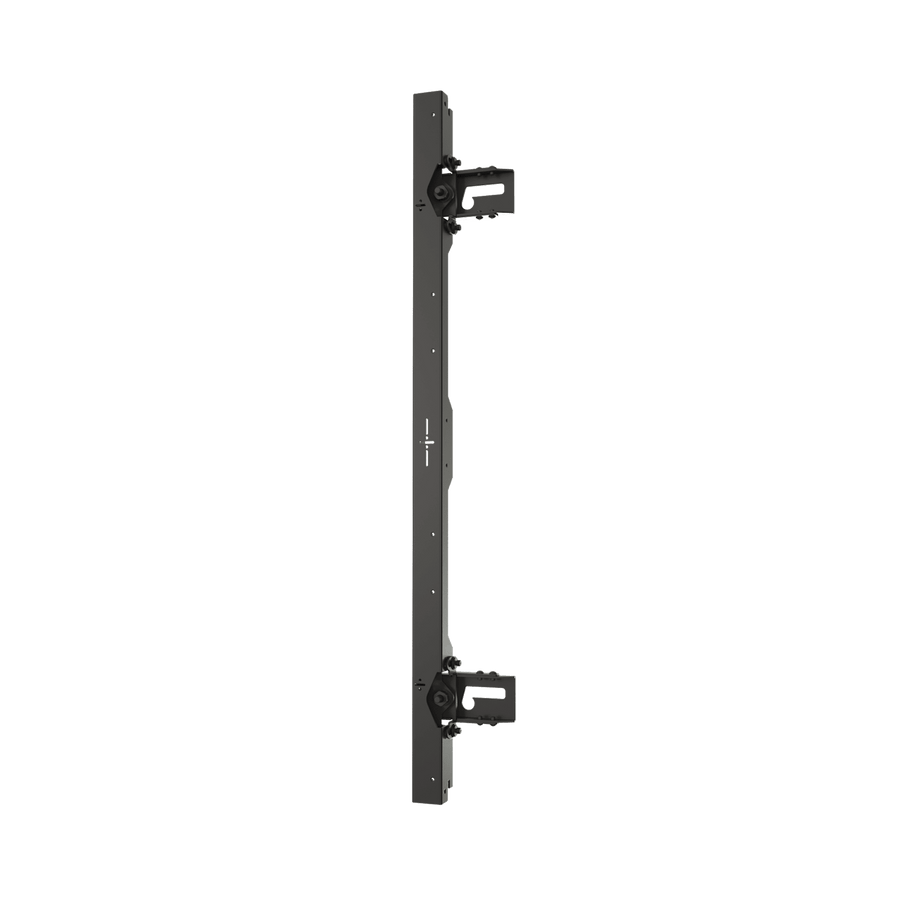

TiLED™ Left dvLED Wall Mount for Nanolumens Engage, 3 Displays Tall

Left-side wall mount for Nanolumens Engage Series, supporting 3-display high configurations with full 3-axis adjustment

The Chief TiLED™ TILD1X3NE1-L is a left-side wall mounting component specifically engineered for Nanolumens Engage Series video walls. This modular structural component is designed to support configurations that are 3 displays high. The TiLED™ system is highly modular, allowing installers to mix and match left, middle, and right components to accommodate various video wall heights, including 3, 4, and 5 display tall layouts. To ensure a flawless visual surface, this mount provides critical alignment through three axes of adjustment. X-axis lateral shift allows for precise horizontal positioning, while Y-axis vertical shift assists in achieving perfect cabinet-to-cabinet alignment. For mounting on imperfect surfaces, the Z-axis plumb adjustment provides 0.75” (19 mm) of compensation to achieve a perfectly flat mounting plane. This mount features offset mounting slots to facilitate easier installation and protect the sides of the LED cabinets from friction damage. The equipment depth range with the display installed is 3.95” to 4.70” (101–120 mm). This TAA compliant solution is part of a larger modular ecosystem where wall mounting structures, vertical connectors, and side covers are required but sold separately.
