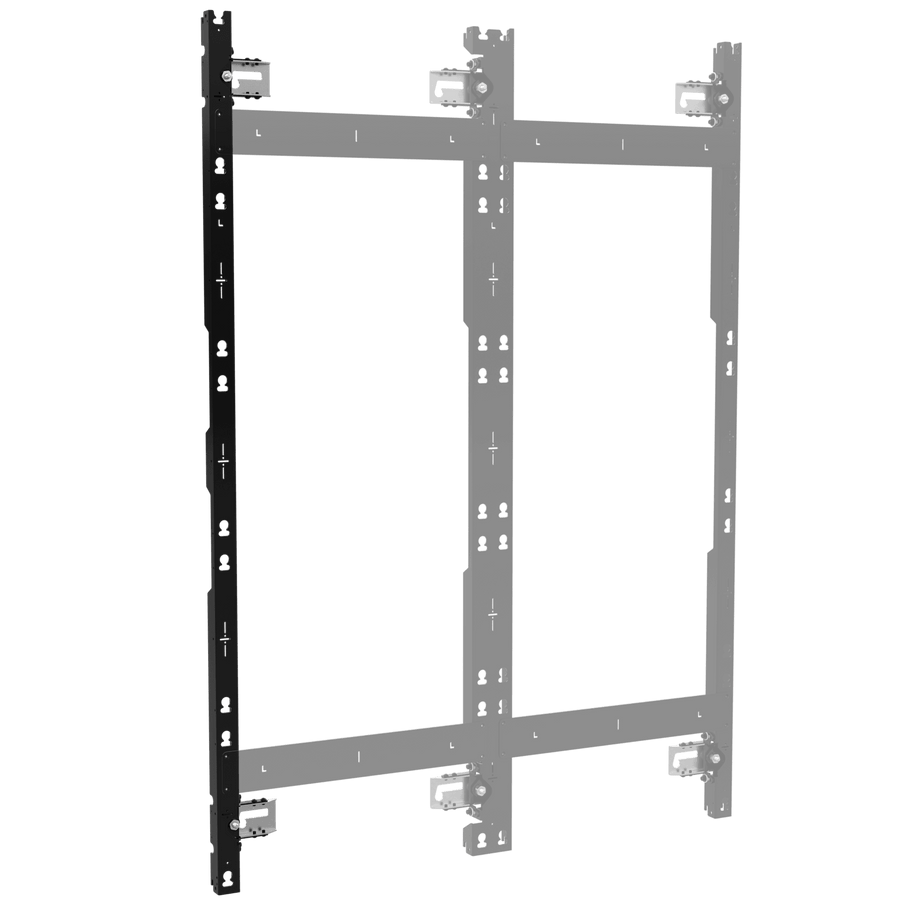

TiLED™ Left dvLED Wall Mount for LG LSBB Series Fine Pitch Essentials, 5 Displays Tall
Left wall mount component for LG LSBB Series Fine-Pitch Essentials, supporting 5-display high video wall configurations
The TILD1X5LG3-L is a left-side structural component designed for the TiLED™ modular mounting system. This specific SKU is configured to support video walls that are 5 displays tall using LG LSBB Series Fine-Pitch Essentials. To complete a video wall assembly, this left component must be used in conjunction with middle and right structural components, which are sold separately. This modular system is designed to allow installers to mix and match components to create customized video wall heights of 3, 4, or 5 displays. Precision is critical for dvLED installations, and this mount provides essential X, Y, and Z-axis adjustments. The X-axis lateral shift adjustments allow for exact horizontal positioning, while Y-axis vertical shift adjustments ensure perfect alignment between adjacent cabinets. To compensate for wall imperfections and achieve a perfectly flat mounting surface, the Z-axis provides 0.75" (19 mm) of plumb adjustment. Each display in this configuration has a weight capacity of 20 lbs (9.1 kg). The mount features offset mounting slots to facilitate easier installation and to protect the sides of the LED cabinets from friction damage during the mounting process.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Equipment Depth Range | 3.29” – 4.04” (84mm-103mm) |
| Plumb Adjustment | 0.75” (19 mm) |
| Shipping Dimensions | 75.5" x 8.75" x 3.5" (191.8 x 22.2 x 8.9 cm) |
| Weight Capacity | 20 lbs -9.1 kg/display |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | LG LSBB Series Fine Pitch Essentials |
All other specifications 6
| Manufacturer | LG |
| Number of Displays | 5 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | No |
| UPC | 841872177847 |
Verified fitment
Questions about this part
Will the TILD1X5LG3-L fit my LG LSBB series display?
Yes, this mount is verified for LG LSBB Series Fine-Pitch Essentials, including models LSBB009, LSBB012, LSBB015, and LSBB018.
What else do I need to order to complete the video wall?
This is a left component; you must also purchase the appropriate middle and right wall mounting components to complete your specific configuration.
Can I adjust the alignment if the wall is not perfectly level?
Yes, the mount features Z-axis plumb adjustment of 0.75" (19 mm) to compensate for wall imperfections.
How much weight can each display weigh in this 5-high setup?
Each display has a weight capacity of 20 lbs (9.1 kg).
What is the depth range for the equipment behind the LED?
The equipment depth range for this mount is 3.29" – 4.04" (84mm-103mm).
