TiLED™ 8x8 dvLED Wall Mount Kit for Nanolumens Engage
Preconfigured TiLED™ 8x8 dvLED wall mount kit for Nanolumens Engage 217" displays

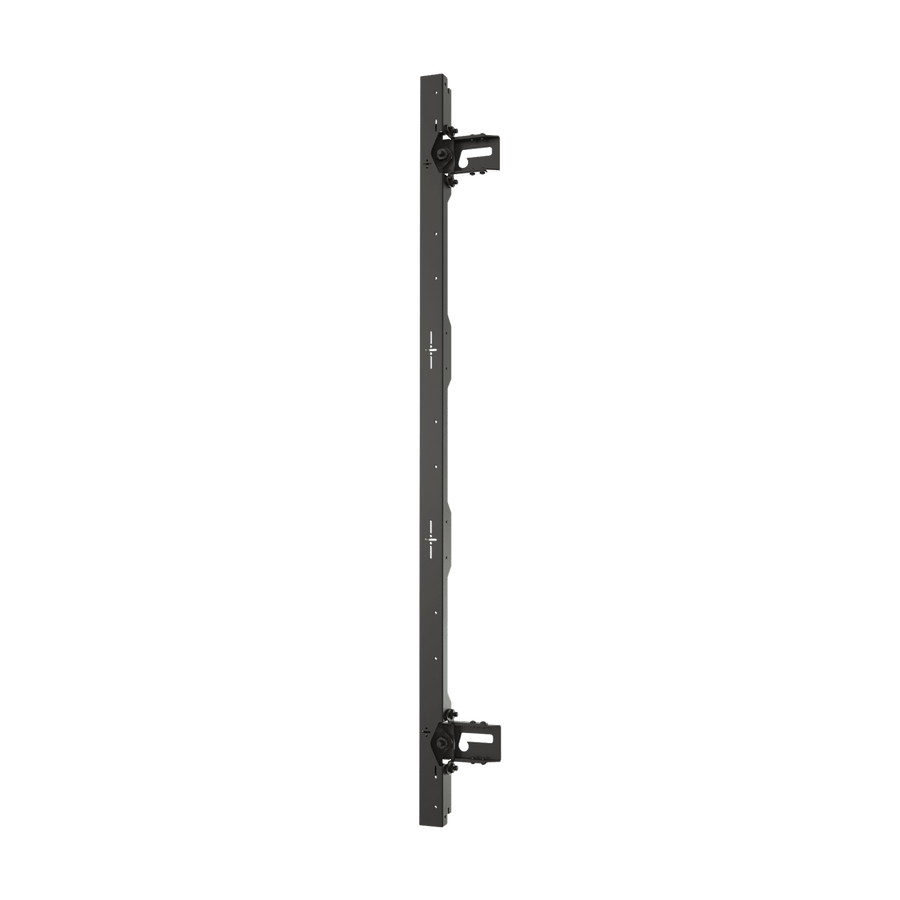

The Chief TILD8X8NE1 is a preconfigured TiLED™ dvLED wall mount kit specifically engineered for the Nanolumens Engage series. This kit is designed to facilitate the installation of an 8x8 landscape configuration for the Engage 8x8 217" display. To streamline the deployment of large-scale LED video walls, this kit contains a specific assortment of mounting components, including two TILD1x4NE1-L units, 14 TILD1x4NE1-M units, and two TILD1X4NE1-R units, supported by nine TILVAB2 components. This coordinated set ensures the structural requirements for a multi-display Nanolumens installation are met with the appropriate bracketry. As this is a landscape-oriented kit, it provides the necessary framework for professional integrators to construct a seamless 8x8 video wall surface. This TAA compliant solution is built for professional environments requiring high-precision mounting for Nanolumens Engage hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 24.75" x 7.5" x 3.2"(628.7 x 190.5 x 81.3 mm) |
| Accessory Type | InstallationMounting Brackets |
| Application | Wall |
| Display | ENGAGE 8X8 217" |
| Manufacturer | Nanolumens |
| Orientation | Landscape |
| Special Features | KitsLED Video WallMulti-Display |
| TAA Compliant | Yes |
Resources
Verified fitment
Questions about this part
Will the TILD8X8NE1 fit my Nanolumens display?
Yes, this kit is specifically configured for Nanolumens Engage Series displays, specifically the 8x8 217" model.
What is included in the TILD8X8NE1 mounting kit?
The kit includes 14 TILD1x4NE1-M, 2 TILD1x4NE1-L, 2 TILD1X4NE1-R, and 9 TILVAB2 components for a complete 8x8 installation.
Is this mounting kit TAA compliant?
Yes, the TILD8X8NE1 is TAA compliant, making it suitable for projects with specific procurement requirements.
Can I customize this mounting kit for a different size?
Yes, you can use the Chief design tool to configure a custom kit if the 8x8 217" configuration does not meet your specific project needs.
Where can I find the installation drawings for the TILD8X8NE1?
Technical documentation, including the TILD8X8NE1 Installation Drawing, CAD drawings, and Revit files, are available for download under the resources tab.
