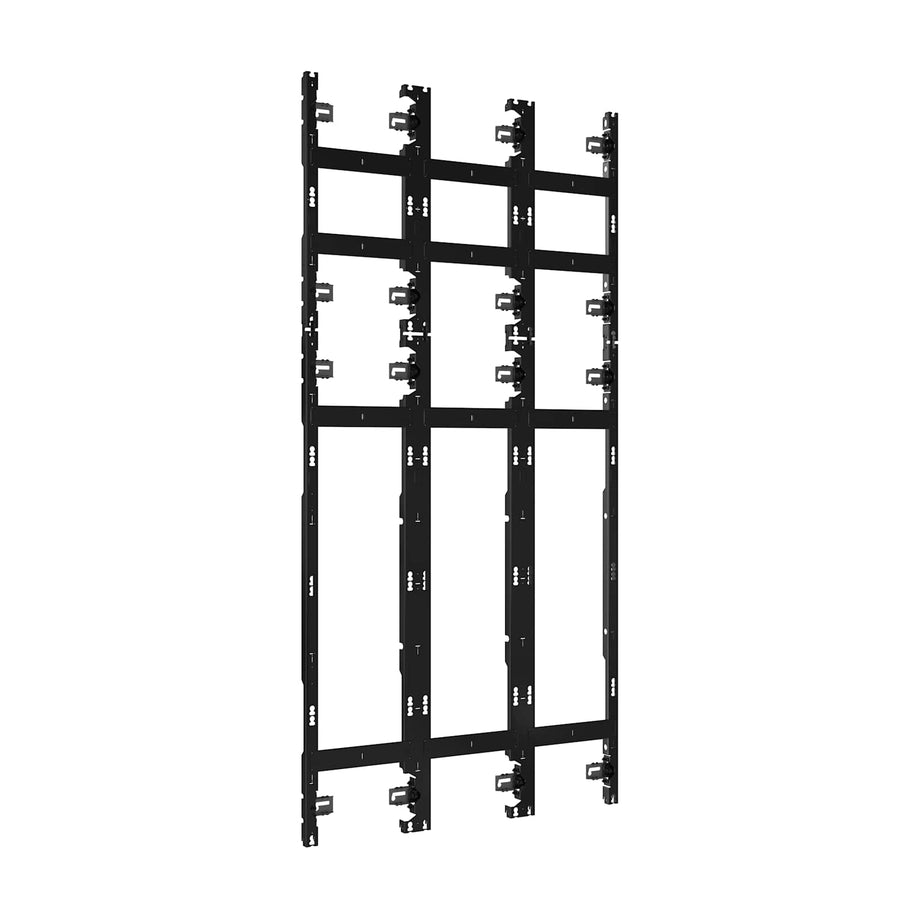

TiLED™ 8x8 dvLED Wall Mount Kit for LG LSCB 217"
Preconfigured 8x8 dvLED wall mount kit for LG LSCB series 217" displays, landscape orientation
The Chief TILD8X8LG2 is a preconfigured TiLED™ 8x8 dvLED wall mount kit designed specifically for the LG LSCB series. This kit is engineered to facilitate the installation of an 8x8 configuration of the LG LSCB-F217C 217" display model. Built for wall applications, this system supports a landscape orientation for large-format multi-display video wall deployments. This TAA-compliant mounting solution includes all necessary components to assemble the 8x8 array, featuring two TILD1x4LG2-L units, 14 TILD1x4LG2-M units, and two TILD1x4LG2-R units, along with 9 TILVAB2 brackets and 64 TILHDW1 hardware pieces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 24.75" x 7.5" x 3.2"(628.7 x 190.5 x 81.3 mm) |
| Accessory Type | InstallationMounting Brackets |
| Application | Wall |
| Base Series | LG LSCB |
| LED Display Model | LSCB-F217C 217 |
| Manufacturer | LG |
| Orientation | Landscape |
| Special Features | KitsLED Video WallMulti-Display |
| TAA Compliant | Yes |
Resources
Questions about this part
Will this kit work with my LG LSCB displays?
This TILD8X8LG2 kit is designed for the LG LSCB series, specifically the LSCB-F217C 217" display model.
What is the layout configuration for this TiLED kit?
This is a preconfigured 8x8 kit, providing the mounting components required for an 8x8 dvLED video wall.
Is this mounting kit TAA compliant?
Yes, this TILD8X8LG2 kit is TAA compliant.
Can this be used in portrait orientation?
This specific kit is designed for landscape orientation.
Which document should I use for the submittal process?
You can refer to the TiLED LG Kits Cheatsheet (PDF) for technical configuration details.
