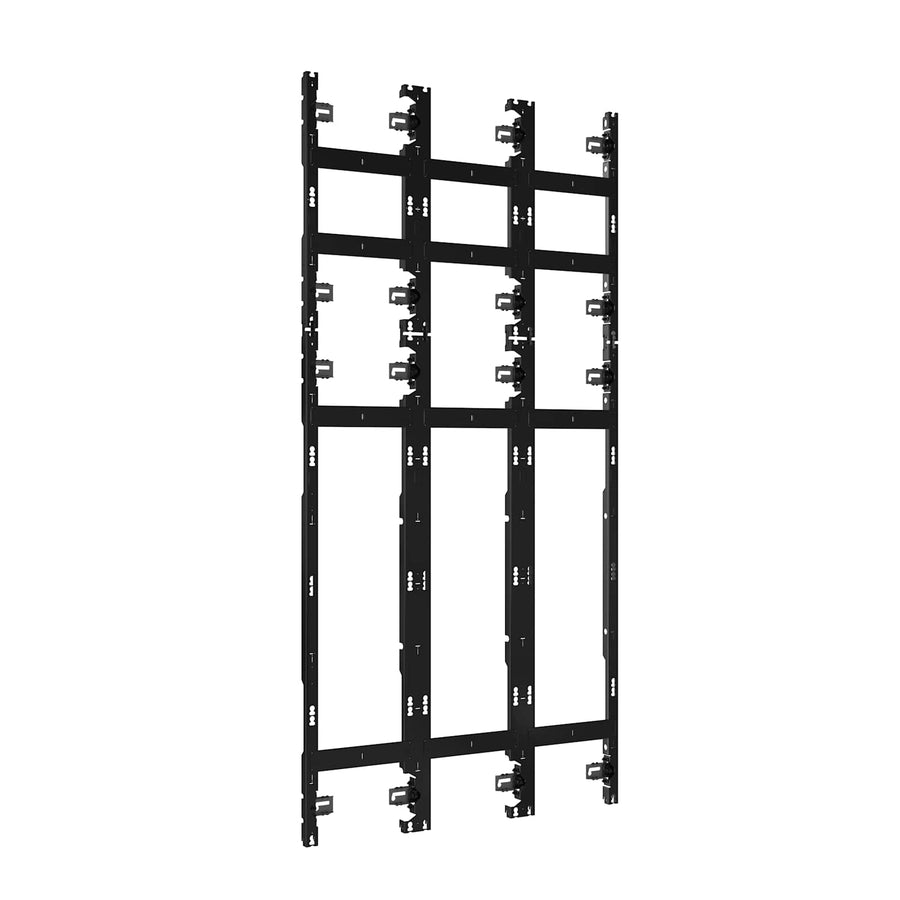

TiLED™ 8x8 dvLED Wall Mount Kit for LG LSBB 217" with Side Covers
Preconfigured 8x8 dvLED wall mount kit for LG LSBB 217" displays, including side covers and mounting hardware
The TILD8X8LG3SC is a preconfigured TiLED™ dvLED wall mount kit specifically engineered for the LG LSBB 217" display series. This comprehensive 8x8 kit is designed for landscape orientation, providing a structured mounting solution for multi-display LED video wall installations. The kit includes 14 TILD1x4LG3-M units, 2 TILD1x4LG3-L units, and 2 TILD1x4LG3-R units to facilitate the layout, along with 9 TILVAB2 units and 64 TILHDW1 hardware components. To ensure a finished aesthetic for the installation, this specific SKU includes side covers (1x TILSC27U2 and 2x TILSC27U3). This TAA compliant solution is built to work specifically with the LG LSBB-F217CU217C 217 model to ensure precise alignment across the 8x8 array.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 24.75" x 7.5" x 3.2"(628.7 x 190.5 x 81.3 mm) |
| Accessory Type | InstallationMounting Brackets |
| Application | Wall |
| Base Series | LG LSBB |
| LED Display Model | LSBB-F217CU217C 217 |
| Manufacturer | LG |
| Orientation | Landscape |
| Special Features | KitsLED Video WallMulti-Display |
| TAA Compliant | Yes |
Resources
Questions about this part
Will this kit fit my LG LSBB displays?
This kit is specifically designed for the LG LSBB-F217CU217C 217 display model within the LG LSBB base series.
What is included in the TILD8X8LG3SC kit?
The kit includes 20 mounting brackets (TILD1x4LG3-L, TILD1x4LG3-M, and TILD1x4LG3-R), 9 TILVAB2 units, 64 TILHDW1 hardware pieces, and 3 side covers (TILSC27U2 and TILSC27U3).
Is this mounting kit TAA compliant?
Yes, this TiLED™ kit is TAA compliant for projects requiring adherence to these standards.
What orientation is this 8x8 kit configured for?
This specific 8x8 preconfigured kit is designed for landscape orientation.
What documentation is available for planning the installation?
For detailed planning and configuration, installers can refer to the TiLED LG Kits Cheatsheet PDF.
