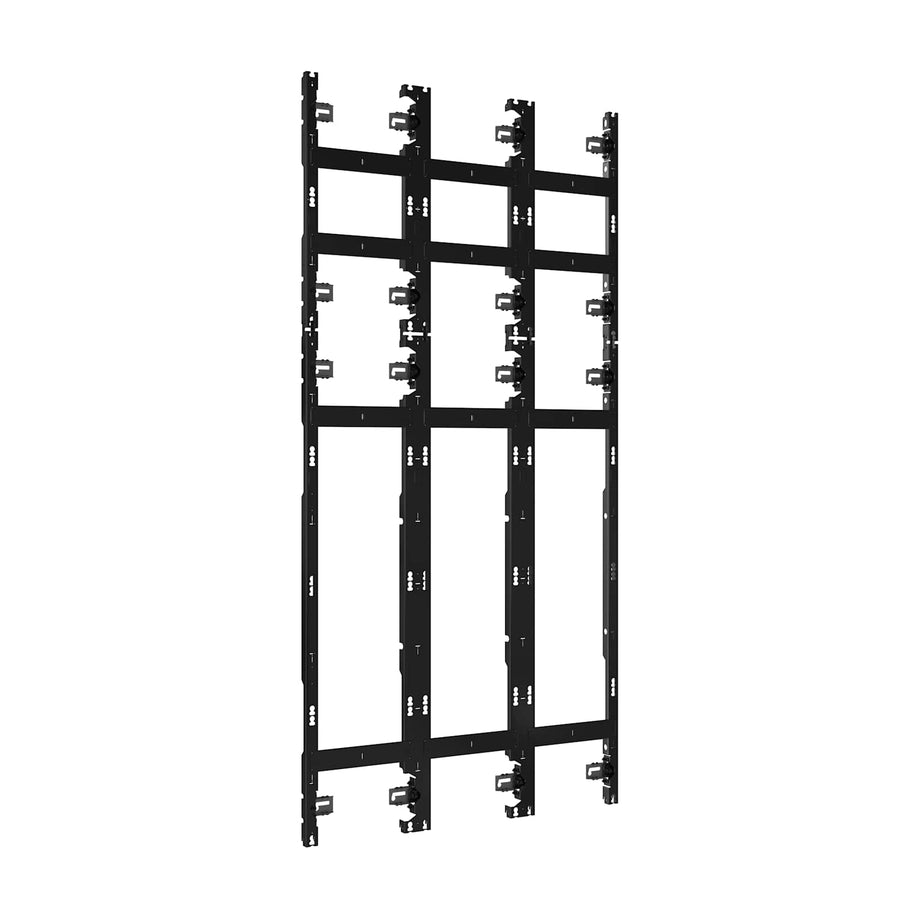

TiLED™ 8x8 dvLED Wall Mount Kit for LG LSBB 217"
Preconfigured 8x8 dvLED wall mount kit for LG LSBB series displays in landscape orientation
The TILD8X8LG3 is a preconfigured TiLED™ dvLED wall mount kit designed for the LG LSBB series. This kit is specifically engineered to support an 8x8 configuration of the LG LSBB-F217CU217C 217 LED display model. Arranged in a landscape orientation, this mounting solution provides a structured framework for multi-display video wall installations. This kit includes the essential mounting hardware and brackets required for this specific display series, including 14 TILD1x4LG3-M units, 2 TILD1x4LG3-L units, 2 TILD1x4LG3-R units, 9 TILVAB2 units, and 64 TILHDW1 units to facilitate the 8x8 assembly. This solution is TAA compliant, meeting necessary requirements for government and specialized institutional projects.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 24.75" x 7.5" x 3.2"(628.7 x 190.5 x 81.3 mm) |
| Accessory Type | InstallationMounting Brackets |
| Application | Wall |
| Base Series | LG LSBB |
| LED Display Model | LSBB-F217CU217C 217 |
| Manufacturer | LG |
| Orientation | Landscape |
| Special Features | KitsLED Video WallMulti-Display |
| TAA Compliant | Yes |
Resources
Questions about this part
Which LG displays is the TILD8X8LG3 compatible with?
This kit is designed specifically for the LG LSBB series, including the LSBB-F217CU217C 217 LED display model.
Is this kit TAA compliant?
Yes, the TILD8X8LG3 is a TAA compliant mounting solution.
What is the orientation for this 8x8 mounting kit?
The kit is configured for a landscape orientation installation.
What is included in this preconfigured TiLED kit?
The kit includes 14 TILD1x4LG3-M, 2 TILD1x4LG3-L, 2 TILD1x4LG3-R, 9 TILVAB2, and 64 TILHDW1 components.
What document is used for submittals regarding this LG kit?
Integrators can refer to the TiLED LG Kits Cheatsheet (PDF) for configuration and submittal details.
