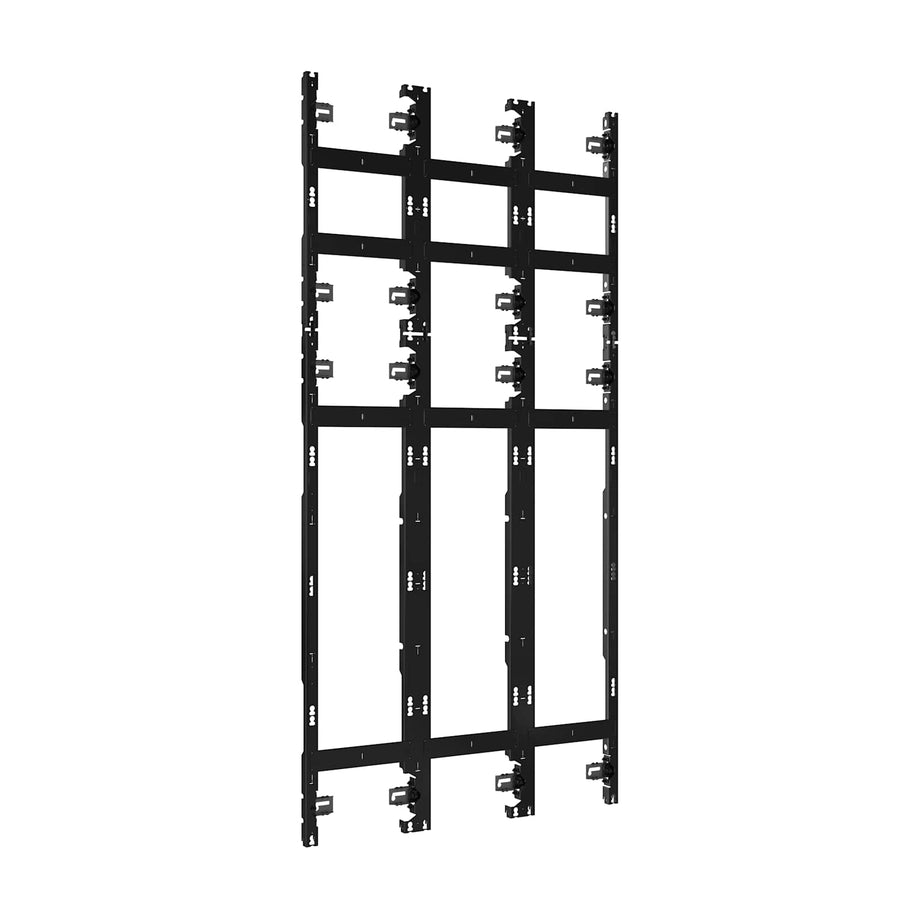

TiLED™ 5x5 dvLED Wall Mount Kit for LG LSBB 136"
TiLED™ 5x5 preconfigured mounting kit for LG LSBB 136" dvLED displays in landscape orientation
The Chief TILD5X5LG3 is a preconfigured TiLED™ 5x5 dvLED wall mount kit specifically engineered for the LG LSBB 136" series. This kit is designed to facilitate the professional installation of multi-display LED video walls in a landscape orientation. It utilizes a coordinated system of mounting brackets and installation items to ensure precise alignment across the 5x5 array. The kit includes one TILD1x5LG3-L, four TILD1x5LG3-M, and one TILD1x5LG3-R component, alongside 25 TILHDW1 units to support the structure. As a TAA compliant solution, this kit provides the necessary mounting infrastructure required for large-scale LG LSBB-F136C 136" display configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 24.75" x 7.5" x 3.2"(628.7 x 190.5 x 81.3 mm) |
| Accessory Type | InstallationMounting Brackets |
| Application | Wall |
| Base Series | LG LSBB |
| LED Display Model | LSBB-F136C 136 |
| Manufacturer | LG |
| Orientation | Landscape |
| Special Features | KitsLED Video WallMulti-Display |
| TAA Compliant | Yes |
Resources
Questions about this part
Will the TILD5X5LG3 kit fit my LG LSBB 136" display?
This kit is specifically designed for the LG LSBB 136" series, including the LSBB-F136C 136" model.
What is included in the TILD5X5LG3 kit?
The kit contains one TILD1x5LG3-L, four TILD1x5LG3-M, one TILD1x5LG3-R, and 25 TILHDW1 units.
Is this mount kit TAA compliant?
Yes, the TILD5X5LG3 is TAA compliant.
What orientation is this 5x5 kit configured for?
This specific kit is configured for landscape orientation.
Where can I find installation guidance for these kits?
You can refer to the TiLED LG Kits Cheatsheet (PDF) available in the resources section for submittal and installation planning.
