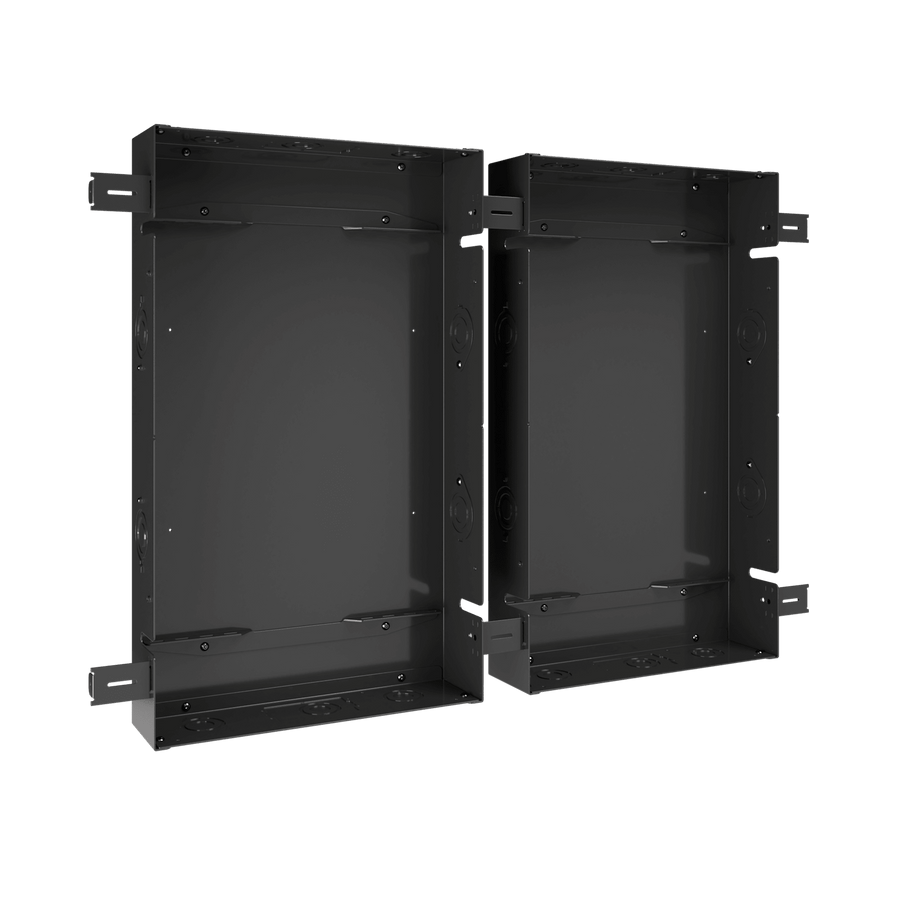

Tempo™ Flat Panel In-Wall Boxes and Stud Tabs Kit
Pre-drywall kit for 65"+ displays, supporting 16" O.C. stud spacing with two in-wall boxes and stud tabs
The Chief FPIWMKIT1 is a Tempo™ Flat Panel In-Wall pre-drywall kit designed for use during the rough-in construction phase. This kit allows contractors to install in-wall boxes with stud tabs to accommodate large-format displays. It is engineered for screens 65" and larger and is weight-rated up to 250 lbs (113 kg). This capacity is designed to cover in-wall boxes and can eliminate the need for wood blocking reinforcement on steel studs when installed according to manufacturer instructions. The system supports both landscape and portrait orientations. For a complete installation, the Tempo™ Flat Panel In-Wall Flange-Mount-Storage Kit (FPIWMKIT2) is required. To house small devices, installers can add Tempo™ In-Wall AV Storage Boxes (FPIWSBX). The boxes are compatible with 0.5" to 1.25" thick drywall and feature various knockouts for cabling flexibility, including single-gang electrical box compatibility.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 28.25" x 17.13" x 4.5" (718 x 435 x 114 mm) |
| Shipping Weight | 27 lbs (12.3 kg) |
| Typical Screen Size | 65"+ (1651mm+) |
| Wall Stud Compatibility | 16” O.C. |
| Color | Black |
| Installation Type | Pre-Drywall Kit |
| Orientation | Landscape or Portrait |
| Solution Type | Universal |
| Special Features | TAA Compliant |
| TAA Compliant | Yes |
| UPC | 841872178288 |
| Certifications | cULusTAAUL 2442 |
Resources
You'll need these with it
Questions about this part
Is the Chief FPIWMKIT1 compatible with my 65 inch display?
Yes, this kit is designed for displays 65"+ and supports VESA mounting patterns ranging from a minimum of 200 x 100 mm to a maximum of 1500 x 450 mm.
What else do I need to buy for a complete Tempo™ in-wall installation?
For a complete installation, you must also purchase the Tempo™ Flat Panel In-Wall Flange-Mount-Storage Kit (SKU: FPIWMKIT2). You may also add FPIWSBX storage boxes to house small devices.
What are the installation requirements for the wall studs?
The kit is designed for 16” O.C. (On Center) wood or metal studs and is compatible with drywall thicknesses between 0.5” and 1.25".
How is the cabling managed through the in-wall boxes?
Each box features three types of knockouts. Side wall knockouts accommodate 1.5", 1.25", 1", and 0.5" trade conduit sizes, while top and bottom knockouts accommodate 1.25", 1", and 0.5" sizes.
Does this kit require a specific submittal for project planning?
Yes, technical drawings and Revit models are available for submittals, and the Tempo Flat Panel In-Wall Mounting System Guide Form Specification Div 27 is available for project documentation.
