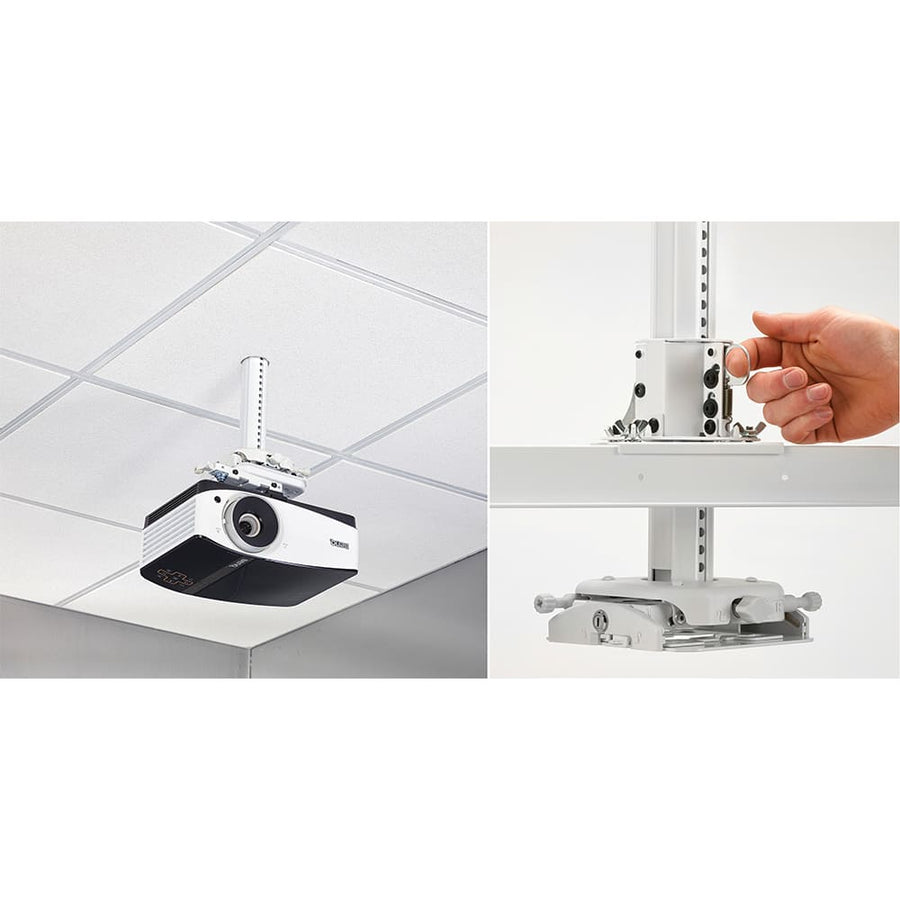

Suspended Ceiling Projector System with Storage - SYS474UW
White suspended ceiling projector mount with integrated storage box for air handling spaces, supporting 35 lbs capacity
The Chief SYS474UW is a suspended ceiling projector system designed for speed and flexibility during both ordering and installation. This system is engineered to reduce installation time by approximately one-third while providing the necessary components to complete most professional AV setups. This specific white model includes a scalable storage box specifically rated for use in air handling spaces. When collapsed, the storage box has a width of 12" (305 mm), and when expanded, it provides dimensions of 5.38" x 22" x 13" (137 x 559 x 330 mm). The system supports a maximum equipment size of 5" x 17" x 12.5" (127 x 432 x 317 mm) and carries a weight capacity of 35 lbs (15.9 kg). For precise alignment, the mount features micro-adjustable, independent roll, pitch, and yaw capabilities, allowing for 360° yaw, 10° pitch, and 3° roll adjustments to ensure the projector is perfectly positioned for the target screen.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 24.94 in (63.4 cm) |
| Height | 19.82 in (50.3 cm) |
| Max Equipment Size | 5" x 17" x 12.5" (127 x 432 x 317 mm) |
| Overall Dimensions | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Shipping Weight | 40.8 lbs (18.5 kg) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Width | 7.25 in (18.4 cm) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
All other specifications 8
| Adjustments | Pitch 10°Roll: 3°Yaw: 360° |
| Application | Ceiling |
| Color | White |
| Solution Type | Universal |
| Special Features | Kits and Storage |
| TAA Compliant | Yes |
| UPC | 841872167541 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
What is the maximum weight and equipment size for the SYS474UW?
The SYS474UW supports a maximum weight capacity of 35 lbs (15.9 kg) and can accommodate equipment measuring up to 5" x 17" x 12.5" (127 x 432 x 317 mm).
Can I adjust the projector's orientation after it is mounted?
Yes, the system features micro-adjustable, independent movement including 360° yaw, 10° of pitch, and 3° of roll for fine-tuned positioning.
How does the storage box work in this system?
The system includes a storage box rated for air handling spaces that measures 12" (305 mm) wide when collapsed and 5.38" x 22" x 13" (137 x 559 x 330 mm) when expanded.
Is this projector mount TAA compliant?
Yes, the SYS474UW is TAA compliant and is UL Listed for use in professional environments.
What documents are available for submittals or installation?
The product documentation includes the SYS474UW installation manual, technical drawings, and CAD files, as well as Revit files for both the mounting series and power receptacles.
