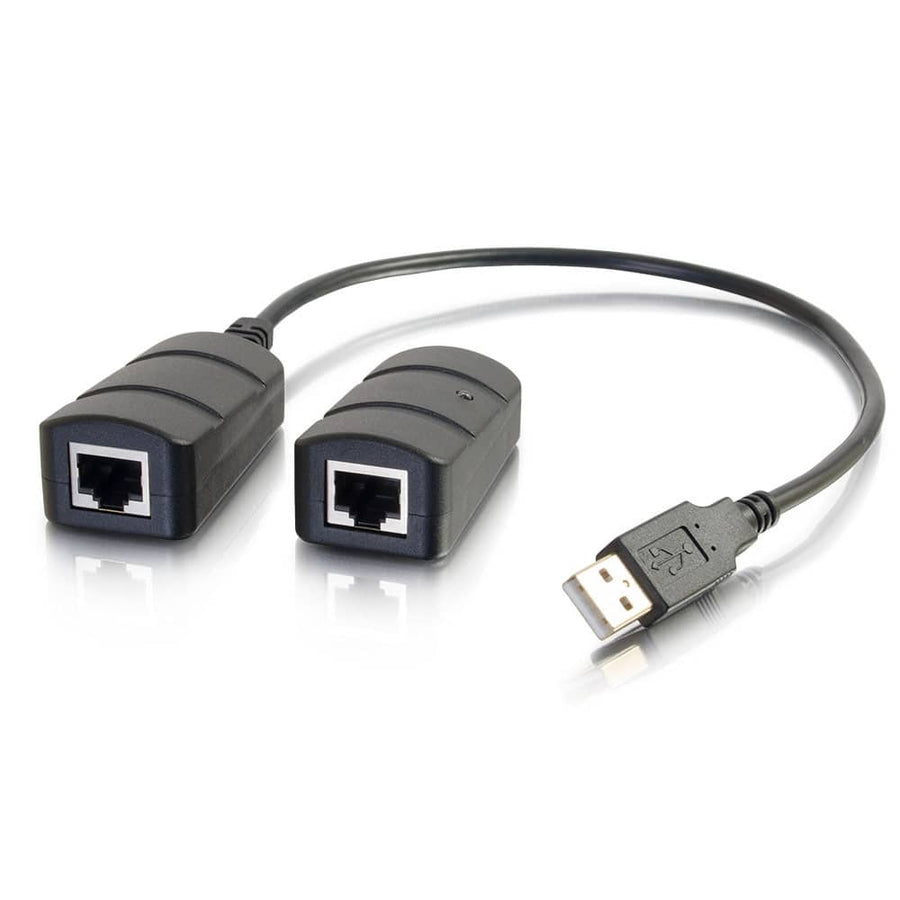

Superbooster® 1-Port USB 2.0 Over Cat5/Cat6 Extender - up to 150ft
USB 2.0 signal extender supporting distances up to 150ft (45.7 m) via Cat5/Cat6 cabling
The C2G CG54284 is a 1-Port USB 2.0 Over Cat5/Cat6 Extender designed to overcome the native 16.4 foot limitation of standard USB cables. This active device is an ideal solution for conference rooms and huddle spaces where hardware must be placed far from the user. By utilizing a single Cat5/Cat6 cable, installers can reduce cable clutter or leverage existing in-wall cabling to bridge connections between separate rooms. The system supports data transfer rates up to 480 MBPS, providing sufficient bandwidth for most USB peripherals. This plug and play solution requires no software or drivers for operation. The included 5V2A DC power supply provides 2 Amps of current, offering the flexibility and power needed to operate most modern USB devices at a remote location. Please note that if you are extending a signal to support a Promethean 300 series or 500 series interactive whiteboard, we recommend using product 29338 instead of this model.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 2 Amp |
| Cable Length | 12.6 in (32 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.65 lbs (0.3 kg) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 14
| Cable Type | ExtensionUSB |
| Color | Black |
| Connector 1 | (1) RJ-45 Female(1) RJ-45 Female(1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) RJ-45 Female(1) RJ-45 Female(1) USB-A Female(1) USB-A Female |
| Product Type | Active DeviceExtender |
| Signal Type | USB 2.0 |
| Special Features | Plug and Play |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120542841 |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
You'll need these with it
20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03987$16.99
8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG03976$9.99
10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG27143$10.99
6ft (1.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03983$7.99
10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG27153$10.99
Questions about this part
The CG54284 extends USB 2.0 signals up to 150 ft (45.7 m) over Cat5/Cat6 cabling.
The CG54284 extends USB 2.0 signals up to 150 ft (45.7 m) over Cat5/Cat6 cabling.
Does this extender work with Promethean interactive whiteboards?
For Promethean 300 series or 500 series interactive whiteboards, use product 29338 rather than the CG54284.
What type of cabling is required for this USB extender?
This device requires standard Cat5/Cat6 cabling for the connection between the two units.
Will I need to install drivers to use the CG54284?
No, this is a plug and play device that requires no software or drivers to operate.
What power requirements are needed for the remote USB device?
The system includes a 5V2A DC power supply providing 2 Amps to support most new USB devices.
