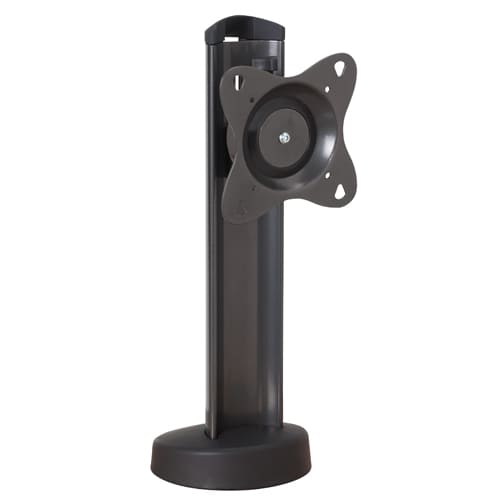

STS1, Secure, Small Bolt-Down Table Stand
Small bolt-down table stand for 18"-30" displays, 30 lbs capacity, featuring swivel, tilt, and height adjustment
The Chief STS1 is a secure, small bolt-down table stand designed for point-of-sale and digital menu displays. This mount supports equipment in an 15" - 26.8" (38 - 68 cm) height range and can be manually adjusted by 5.1 in (129.5 mm). It is built to accommodate displays with a typical screen size of 18" - 30" (457mm - 762 mm) and a weight capacity of up to 30 lbs (13.6 kg). To ensure a clean installation in high-traffic areas, the STS1 includes a built-in cable management system to hide wires. The stand provides smooth swivel movement and fingertip tilt ranging from +15° to -15°. For installation, this model features a post-installation leveling roll to ensure the display is perfectly aligned. This universal solution is available in a Black finish and can be mounted in either Landscape or Portrait orientation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Height Range | 15" - 26.8" (38 - 68 cm) |
| Manual Height Adjustment | 5.1 in (129.5 mm) |
| Shipping Dimensions | 17" x 8.50" x 6.25"(431.8 x 215.9 x 158.8 mm) |
| Shipping Weight | 6.67 lbs (3 kg) |
| Typical Screen Size | 18" - 30" (457mm - 762 mm) |
| Weight Capacity | 30 lbs (13.6 kg) |
| Adjustability | Swivel |
| Color | Black |
All other specifications 6
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +15° / -15° |
| UPC | 841872145907 |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will the STS1 fit my specific display model?
The STS1 is verified against 3,639 display models from 220 manufacturers, including the Samsung 151B, LG 15LA60, and NEC 2335WXM.
How much weight can the STS1 handle?
This stand has a weight capacity of 30 lbs (13.6 kg) for displays within the 18" to 30" screen size range.
Can I adjust the tilt and orientation of the screen?
Yes, the STS1 allows for fingertip tilt from +15° to -15° and supports both Landscape and Portrait orientations.
What is the height adjustment range for this stand?
The STS1 offers a manual height adjustment of 5.1 in (129.5 mm) within an equipment height range of 15" - 26.8" (38 - 68 cm).
What documents are available for submittals?
Technical drawings (PDF), CAD drawings (dwg), and the installation manual (PDF) are all available for the STS1.
