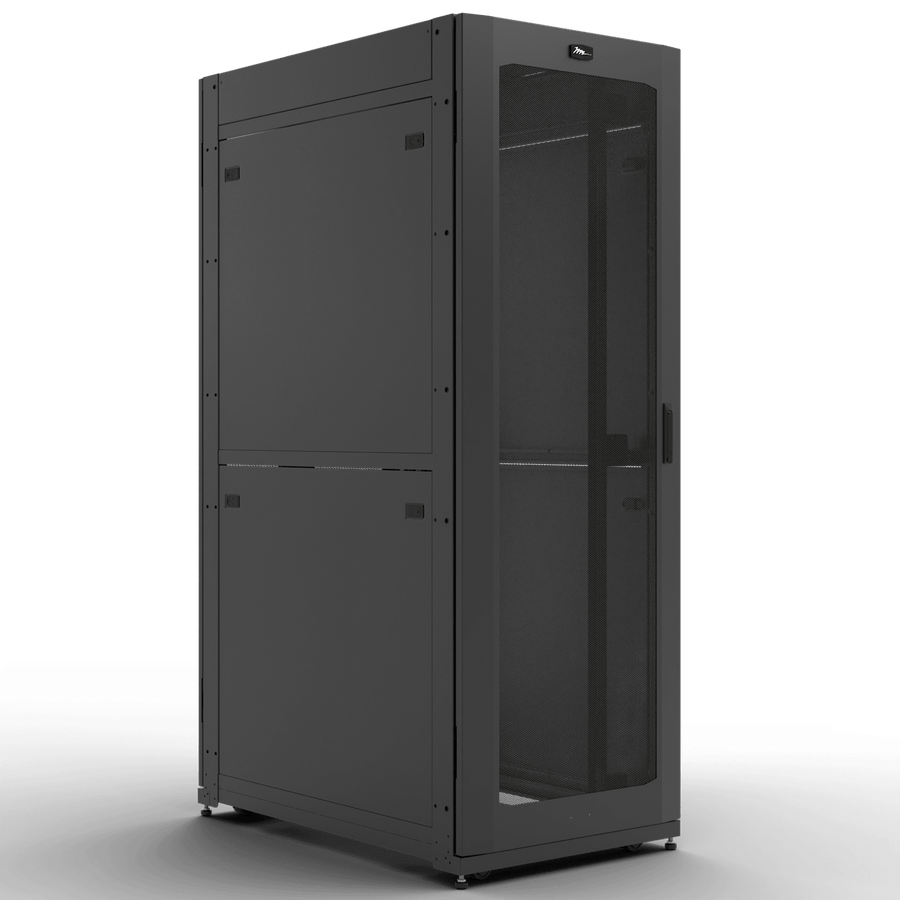

SNE Series Rack SNE30D-4548-P1

Wide 45 RU security network enclosure kit with passive front-to-rear airflow and Lever Lock compatibility

The Middle Atlantic SNE30D-4548-P1 is a pre-configured SNE Series Wide Security Network Enclosure Kit designed for high-density digital and IP-based security systems. This 45 RU floor-standing enclosure provides a specialized environment for network equipment, servers, and heavy cabling loads. It features a 30-inch width and 48-inch overall depth, providing a usable depth of 44.48 inches for equipment mounting. To manage heat in data center environments, this unit utilizes passive front-to-rear airflow, aided by a 70% open area vented front door and a 70% open area split rear door. The enclosure is constructed of steel with a black texture powder coat finish and includes a solid top with a brush cable pass-through for organized entry. This TAA compliant and UL listed unit is seismic rated with a seismic load capacity of 1050 lbs (476.3 kg) and a UL load capacity of 3000 lbs (1,360.8 kg). For installation versatility, it is compatible with all 21-inch vertical Lever Lock accessories, which can accommodate small devices like encoders and power supplies via a Tool-Free Lever Lock system.
