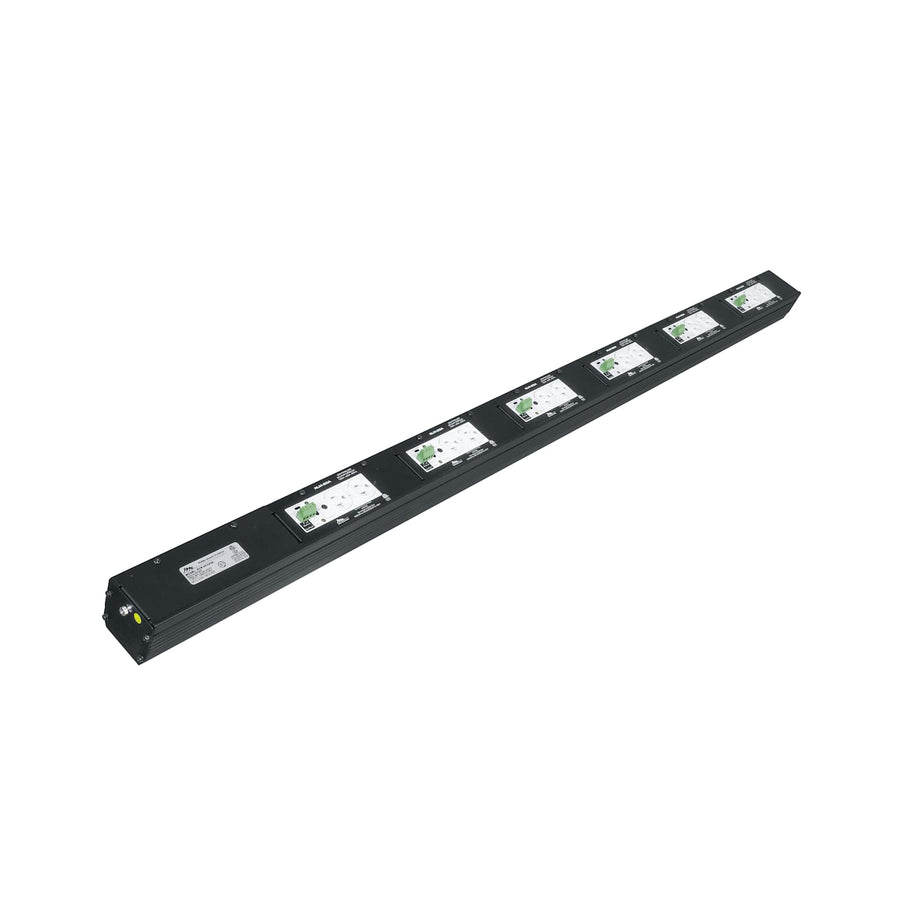

Pre-Configured MPR Raceway, 20A Circuit
Pre-configured 56.03" vertical MPR raceway with 12 outlets and 20 Amp J-Box termination
The PCR6-A is a factory-assembled MPR raceway designed to reduce on-site installation time. This 56.03 in (142.3 cm) vertical strip features six 20 Amp duplex modules, providing a total of 12 outlets across a single 20 Amp circuit. The unit terminates in an integral J-Box, making it compatible with 120 VAC connections. For advanced power management, each duplex can be independently controlled using a USC-6R Universal Sequencing Controller or any other sequencing controller that provides a maintained switch closure output. Constructed from 18-gauge steel with a durable black powder coat finish, this TAA compliant power solution is built for professional environments. The PCR6-A provides a highly organized way to manage power distribution within a rack or enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Amps | 20 Amp |
| Depth | 3.75 in (9.5 cm) |
| Height | 56.03 in (142.3 cm) |
| Shipping Weight | 14.9 lbs (6.8 kg) |
| Volts AC | 120 VAC |
| Width | 3 in (7.6 cm) |
| Number of Circuits | 1 |
| Outlet Count | 12 |
| Plug Type | J-Box |
| Special Features | Configurable Power |
| UPC | 656747195952 |
| Compliance | ETL Recognized |
Resources
Questions about this part
How can I control the individual outlets on the PCR6-A?
Each duplex can be independently controlled using a USC-6R Universal Sequencing Controller or a controller providing maintained switch closure output.
What type of power connection is required for this raceway?
The PCR6-A features a J-Box plug type for 120 VAC 20 Amp circuit connections.
Is the PCR6-A TAA compliant?
Yes, the PCR6-A is TAA compliant and is manufactured with 18-gauge steel.
Does this raceway require additional modules to function?
The PCR6-A comes pre-configured with six 20 Amp modules already installed for a total of 12 outlets.
What document should I use for installation submittals?
You can refer to the PCR - Pre-Configured Raceway Instruction Sheet for technical installation details.
